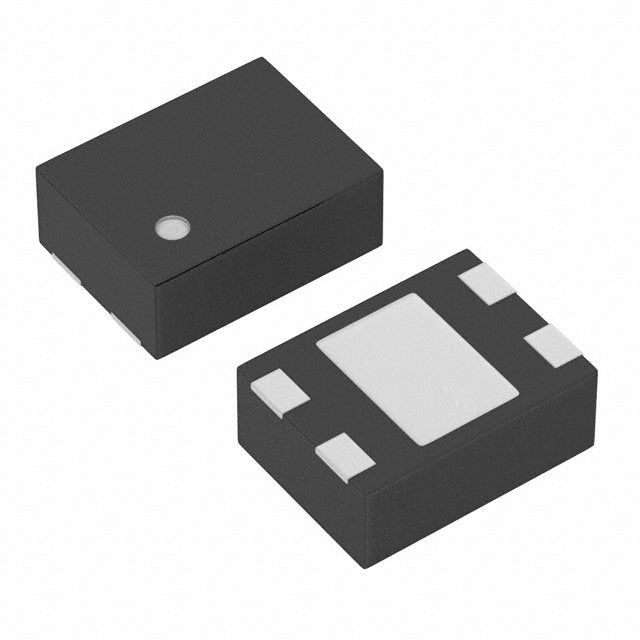

Torex Semiconductor Ltd XC6233H241GR-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.63 | $0.63 |
| 15+ | $0.15 | $2.25 |
| 25+ | $0.14 | $3.50 |
| 50+ | $0.14 | $7.00 |
| 100+ | $0.12 | $12.00 |
| N+ | $0.02 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2.4V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.52V @ 200mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 87 µA |
| Current - Supply (Max) | - |
| PSRR | 75dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-UDFN Exposed Pad |
| Supplier Device Package | 4-USP (1.2x1.6) |
| ROHS |  |
The Torex XC6233H241GR-G is a 200mA LDO linear regulator with a fixed 2.4V output. Its 4-USP (1.2x1.6) package and 87µA quiescent current make it perfect for compact, battery-powered devices. Featuring 0.52V dropout at full load and 75dB PSRR at 1kHz, it ensures stable, low-noise power delivery.
- Versatile Voltage: 2.4V output bridges 2.5V and 2.3V logic families.
- Low Noise Operation: 75dB PSRR at 1kHz reduces interference in RF and audio circuits.
- High Efficiency: 87µA quiescent current extends battery runtime.
- Thermal Performance: Low dropout minimizes heat generation in compact enclosures.
Digital Core Power
2.4V output with 200mA capacity powers DSPs, MCUs, and digital signal processors requiring a stable mid-voltage rail.
RF Transceiver Front-Ends
High PSRR minimizes VCO pulling and phase noise in 2.4GHz wireless systems.
Portable Audio Players
Clean 2.4V supply for DACs and headphone amplifiers preserves dynamic range and reduces hiss.
Smart Home Sensors
Low quiescent current extends battery life in thermostats, motion detectors, and smart locks.
Industrial Control Loops
Reliable 2.4V rail for PLC I/O modules and process transmitters in noisy factory environments.
Wearable Fitness Trackers
Compact package and low dropout support slim designs with consistent performance during motion.
- Q: What is the output voltage of the XC6233H241GR-G?
- A: The fixed output voltage is 2.4V.
- Q: What is the maximum output current?
- A: It can deliver up to 200mA.
- Q: What is the input voltage range?
- A: The input voltage range starts from 2.4V (typical).
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.52V at 200mA output.
- Q: What is the quiescent current?
- A: The quiescent current is 87 µA.
- Q: What package is available?
- A: It comes in a 4-USP (1.2x1.6) package.
