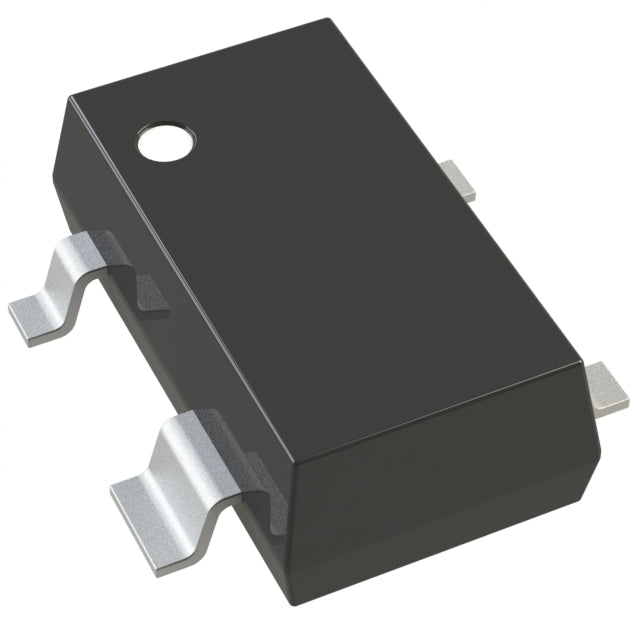

Torex Semiconductor Ltd XC6233H24BNR-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.59 | $0.59 |
| 15+ | $0.14 | $2.10 |
| 25+ | $0.14 | $3.50 |
| 50+ | $0.13 | $6.50 |
| 100+ | $0.11 | $11.00 |
| N+ | $0.02 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2.45V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.52V @ 200mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 87 µA |
| Current - Supply (Max) | - |
| PSRR | 75dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SC-82 |
| Supplier Device Package | SSOT-24 |
| ROHS |  |
The Torex XC6233H24BNR-G is a high-efficiency 200mA LDO regulator with a fixed 2.45V output. Its ultra-low 87 µA quiescent current and 75dB PSRR make it perfect for battery-powered and noise-sensitive applications. The SSOT-24 package and 0.52V dropout at full load provide a compact, reliable power solution for modern electronics.
- Minimal Power Loss: 87 µA quiescent current reduces wasted energy, ideal for always-on devices.
- Superior Noise Filtering: 75dB PSRR at 1kHz protects sensitive circuits from supply noise.
- Low Dropout Voltage: 0.52V at 200mA enables efficient operation from low input voltages.
- Versatile Package: SSOT-24 is suitable for both prototyping and mass production.
Memory Power Supply
For low-voltage SRAM or flash memory in portable devices, the 2.45V rail with 200mA capability ensures reliable read/write operations.
Portable Audio Players
The high PSRR minimizes power supply noise, delivering clean audio output in MP3 players or portable DACs.
Smart Card Readers
In payment terminals, the stable 2.45V supply for the card interface IC ensures consistent communication and data integrity.
Battery Management Systems
For monitoring circuits in battery packs, this LDO provides a stable reference voltage for voltage and current measurement.
Wearable Health Monitors
In fitness trackers, the low quiescent current and compact package enable continuous operation from a small coin cell battery.
Industrial Process Controllers
With robust thermal performance, this regulator powers control logic in factory automation equipment, ensuring stable operation in high-temperature environments.
- Q: What is the output voltage of the XC6233H24BNR-G?
- A: The fixed output voltage is 2.45V.
- Q: What is the maximum output current?
- A: The maximum output current is 200mA.
- Q: What is the input voltage range?
- A: The input voltage range is from 2.45V up to the absolute maximum rating (typically 6.0V, refer to datasheet).
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.52V at 200mA output current.
- Q: What is the quiescent current?
- A: The quiescent current is a low 87 µA, ideal for battery-powered devices.
- Q: What package is available?
- A: The device is available in the compact SSOT-24 package.
