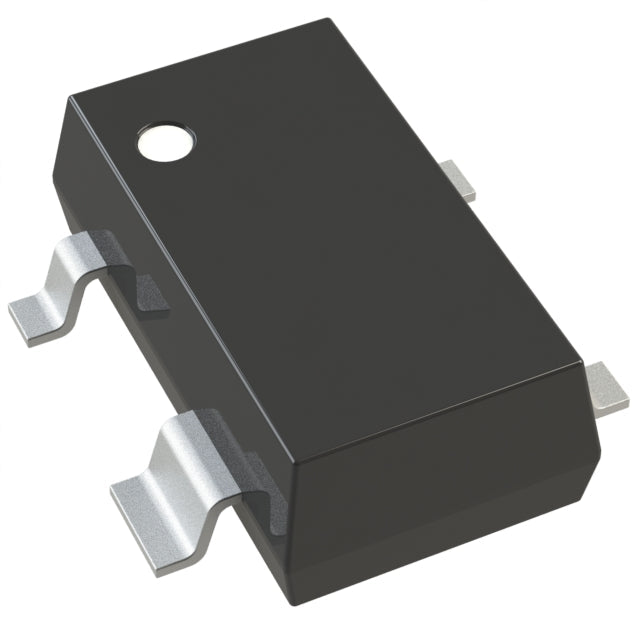

Torex Semiconductor Ltd XC6233H281NR-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.40 | $0.40 |
| 15+ | $0.39 | $5.85 |
| 25+ | $0.38 | $9.50 |
| 50+ | $0.36 | $18.00 |
| 100+ | $0.32 | $32.00 |
| N+ | $0.06 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.42V @ 200mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 87 µA |
| Current - Supply (Max) | - |
| PSRR | 75dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SC-82 |
| Supplier Device Package | SSOT-24 |
| ROHS |  |
The XC6233H281NR-G from Torex Semiconductor is a high-performance 200mA LDO linear regulator delivering a fixed 2.8V output. With an ultra-low quiescent current of 87 µA and excellent 75dB PSRR at 1kHz, it ensures clean, stable power for battery-operated and noise-sensitive applications. The low dropout voltage of 0.42V at full load maximizes efficiency, while the compact SSOT-24 package saves valuable board space.
- Extended Battery Life: Ultra-low 87 µA quiescent current minimizes standby power consumption in portable devices.
- Clean Power Delivery: 75dB PSRR at 1kHz effectively filters supply noise for sensitive analog and RF circuits.
- High Efficiency: Low 0.42V dropout at 200mA allows operation from a 3.3V rail with minimal power loss.
- Space-Saving Design: SSOT-24 package is ideal for compact PCB layouts in space-constrained applications.
Portable Battery-Powered Devices
The low 87 µA quiescent current and 200mA output make it ideal for extending battery life in wearables, IoT sensors, and handheld instruments where standby power is critical.
Noise-Sensitive Analog Circuits
With 75dB PSRR at 1kHz, this LDO provides clean, stable power to precision op-amps, ADCs, and audio codecs, minimizing supply-induced noise.
Wireless Communication Modules
Stable 2.8V output with high ripple rejection supports RF transceivers and Bluetooth/Wi-Fi modules, ensuring consistent performance during transmission bursts.
Industrial Sensor Interfaces
The 200mA current capability and low dropout of 0.42V allow regulation from a 3.3V rail to 2.8V for industrial pressure, temperature, and flow sensors.
Automotive Interior Electronics
Its compact SSOT-24 package and reliable operation suit infotainment clusters, dashboard displays, and interior lighting controllers requiring a stable 2.8V rail.
Medical Monitoring Devices
Low noise and stable output make it suitable for portable patient monitors and diagnostic equipment where consistent voltage is essential for measurement accuracy.
- Q: What is the output voltage of the XC6233H281NR-G?
- A: The fixed output voltage is 2.8V.
- Q: What is the maximum output current?
- A: It can deliver up to 200mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.42V at 200mA output.
- Q: What is the quiescent current?
- A: The quiescent current is 87 µA.
- Q: What package is available?
- A: It comes in the SSOT-24 package.
XC6233H281NR-G.pdf
- Q: What is the output voltage of the XC6233H281NR-G?
- A: The fixed output voltage is 2.8V.
- Q: What is the maximum output current?
- A: It can deliver up to 200mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.42V at 200mA output.
- Q: What is the quiescent current?
- A: The quiescent current is 87 µA.
- Q: What package is available?
- A: It comes in the SSOT-24 package.
