Torex Semiconductor Ltd XC6241A3319R-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.37 | $0.37 |
| 15+ | $0.36 | $5.40 |
| 25+ | $0.35 | $8.75 |
| 50+ | $0.33 | $16.50 |
| 100+ | $0.29 | $29.00 |
| N+ | $0.06 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.255V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 900 nA |
| Current - Supply (Max) | - |
| PSRR | 60dB (1kHz) |
| Control Features | Current Limit, Enable |
| Protection Features | Over Current, Short Circuit |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

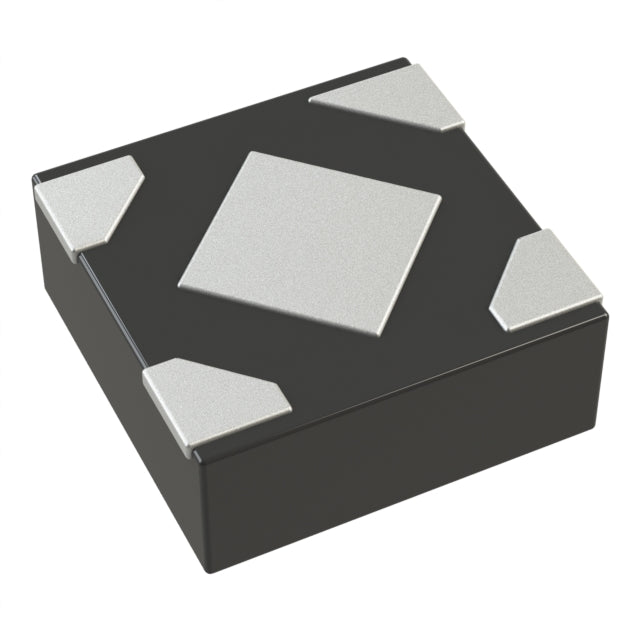

| Package / Case | 4-XDFN Exposed Pad |
| Supplier Device Package | 4-USPQ-B05 (1x1) |
The Torex XC6241A3319R-G is a high-performance, low dropout linear regulator designed for ultra-low power applications. It delivers a fixed 3.3V output with a maximum current of 150mA. Its standout feature is a remarkably low quiescent current of just 900nA, making it an excellent choice for battery-powered and energy-harvesting devices. Housed in a compact 1x1mm USPQ package, it offers a dropout voltage of only 255mV at full load, ensuring efficient operation even with tight voltage margins.
- Extended Battery Life: The 900nA quiescent current minimizes standby power draw, dramatically prolonging the operational life of portable devices.
- Space-Saving Design: The ultra-compact 4-USPQ-B05 (1x1mm) package is ideal for miniaturized electronics where board space is at a premium.
- High Efficiency at Low Dropout: A low 255mV dropout voltage at 150mA allows for stable regulation even when the input voltage is close to the output, reducing power dissipation.
- Stable Output: Provides a clean and stable 3.3V rail, ensuring reliable performance for sensitive low-power microcontrollers and sensors.
Battery-Powered IoT Sensors
The ultra-low 900nA quiescent current significantly extends battery life in always-on sensor nodes, making it ideal for wireless environmental monitoring.
Wearable Health Monitors
The tiny 1x1mm package and low dropout voltage allow for efficient regulation from a single Li-ion cell to 3.3V, fitting space-constrained fitness bands and smart patches.
Energy Harvesting Systems
With minimal ground current, this LDO maximizes the usable power from micro-energy sources like solar cells or thermoelectric generators, enabling self-powered devices.
Portable Medical Devices
The stable 3.3V rail and low noise characteristics ensure reliable operation for glucose monitors and digital thermometers, where consistent power is critical.
Real-Time Clock (RTC) Backup Power
Its nano-amp quiescent current is perfect for maintaining RTC operation during main power loss, preserving timekeeping in smart meters and industrial equipment.
- Q: What is the output voltage of the XC6241A3319R-G?
- A: The fixed output voltage is 3.3V.
- Q: What is the maximum output current?
- A: It can deliver up to 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 255mV at 150mA output.
- Q: What is the quiescent current?
- A: The quiescent current is an ultra-low 900nA.
- Q: What package is available?
- A: It comes in a compact 4-USPQ-B05 (1x1mm) package.
