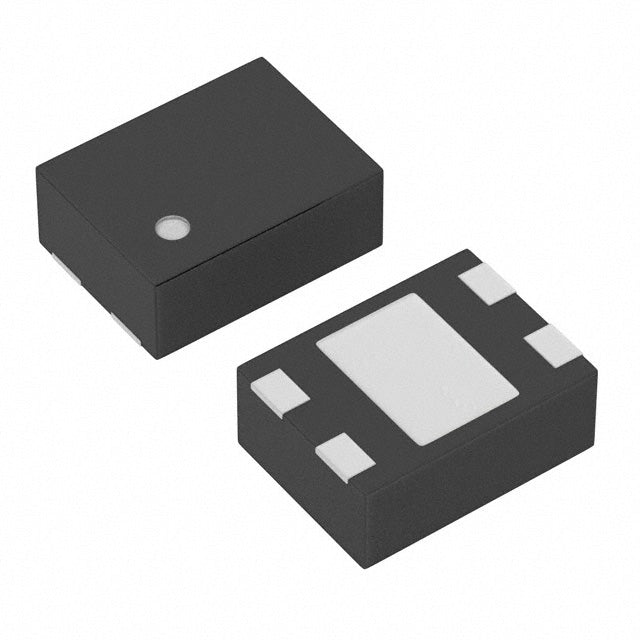

Torex Semiconductor Ltd XC6501A191GR-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.92 | $0.92 |
| 15+ | $0.21 | $3.15 |
| 25+ | $0.21 | $5.25 |
| 50+ | $0.20 | $10.00 |
| 100+ | $0.17 | $17.00 |
| N+ | $0.03 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.9V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.47V @ 200mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 18 µA |
| Current - Supply (Max) | - |
| PSRR | 50dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-UDFN Exposed Pad |
| Supplier Device Package | 4-USP (1.2x1.6) |
| ROHS |  |
The Torex XC6501A191GR-G is a 200mA LDO regulator providing a fixed 1.9V output. With an 18 µA quiescent current and 50dB PSRR, it ensures efficient, noise-free power for battery-operated devices. The 4-USP package and 0.47V dropout at full load make it a reliable choice for compact designs.
- Efficient Operation: 0.47V dropout at 200mA reduces power loss and heat generation.
- Battery-Friendly: 18 µA quiescent current minimizes drain in idle mode.
- Space-Efficient: 4-USP (1.2x1.6mm) package suits miniaturized electronics.
- Stable Output: 50dB PSRR at 1kHz filters supply noise for reliable performance.
Sensor Signal Conditioning
The 1.9V output with 50dB PSRR provides a clean supply for sensor amplifiers and filters in industrial monitoring systems.
Portable GPS Devices
Low quiescent current extends battery life in handheld GPS units, while 200mA supports the GPS receiver and display.
Smart Watches
The compact 4-USP package and 1.9V output are ideal for powering the main processor and sensors in smart wearables.
Wireless Charging Controllers
This LDO regulates the 1.9V rail for control logic in wireless charging receivers, ensuring stable operation.
Automotive Telematics
With reliable performance, this regulator powers communication modules in vehicle tracking systems.
Portable Barcode Scanners
The low dropout and clean output support the 1.9V logic rail in handheld scanners, improving read reliability.
- Q: What is the output voltage of the XC6501A191GR-G?
- A: The output voltage is fixed at 1.9V.
- Q: What is the maximum output current?
- A: The maximum output current is 200mA.
- Q: What is the input voltage range?
- A: The input voltage range starts from 1.9V.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.47V at 200mA output current.
- Q: What is the quiescent current?
- A: The quiescent current is a low 18 µA.
- Q: What package is available?
- A: It comes in a compact 4-USP (1.2x1.6) package.
