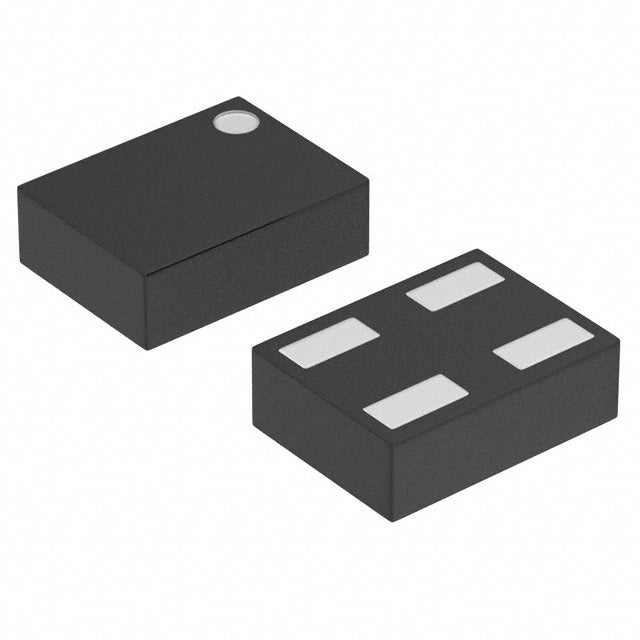

Torex Semiconductor Ltd XC6501D3317R-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.84 | $0.84 |
| 15+ | $0.19 | $2.85 |
| 25+ | $0.19 | $4.75 |
| 50+ | $0.18 | $9.00 |
| 100+ | $0.16 | $16.00 |
| N+ | $0.03 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.35V @ 200mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 21 µA |
| Current - Supply (Max) | - |
| PSRR | 50dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-XDFN |
| Supplier Device Package | 4-USPN (0.90x1.2) |
| ROHS |  |
The Torex XC6501D3317R-G is a 200mA LDO regulator offering a fixed 3.3V output, the industry-standard voltage for digital circuits. With a low 21 µA quiescent current and 0.35V dropout, it is optimized for battery-powered and energy-efficient designs. Its compact 4-USPN package makes it a versatile choice.
- Industry-Standard Voltage: Fixed 3.3V output simplifies design for common logic rails.
- Low Power Consumption: 21 µA quiescent current is ideal for always-on applications.
- High Efficiency: 0.35V dropout at 200mA reduces power dissipation.
- Excellent Noise Performance: 50dB PSRR at 1kHz for clean power delivery.
Standard 3.3V Logic Systems
Directly powers 3.3V microcontrollers, FPGAs, and digital logic with up to 200mA current.
Battery-Powered IoT Devices
21 µA quiescent current is ideal for smart home sensors and beacons that run on coin cells.
Portable Instrumentation
Provides stable power for multimeters and handheld test equipment, with low dropout for battery operation.
Wireless Modules
Clean 3.3V rail for Wi-Fi and BLE modules, with 50dB PSRR reducing interference.
Consumer Electronics
Powers remote controls, e-readers, and other low-power consumer devices efficiently.
Embedded Systems
Reliable regulation for industrial control boards, ensuring consistent performance across temperature ranges.
- Q: What is the output voltage of the XC6501D3317R-G?
- A: The fixed output voltage is 3.3V.
- Q: What is the maximum output current?
- A: It can deliver up to 200mA.
- Q: What is the input voltage range?
- A: The input voltage is 3.3V (typical operating condition).
- Q: What is the dropout voltage?
- A: Dropout is 0.35V at 200mA output current.
- Q: What is the quiescent current?
- A: The quiescent current is 21 µA.
- Q: What package is available?
- A: It comes in a 4-USPN (0.90x1.2) package.
