Torex Semiconductor Ltd XC6504A1117R-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.50 | $0.50 |
| 15+ | $0.49 | $7.35 |
| 25+ | $0.48 | $12.00 |
| 50+ | $0.45 | $22.50 |
| 100+ | $0.40 | $40.00 |
| N+ | $0.08 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.1V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 2.05V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 1.27 µA |
| Current - Supply (Max) | - |
| PSRR | - |
| Control Features | Enable |
| Protection Features | Over Current |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-XFDFN |
| Supplier Device Package | USPN-4B02 |
| ROHS |  |

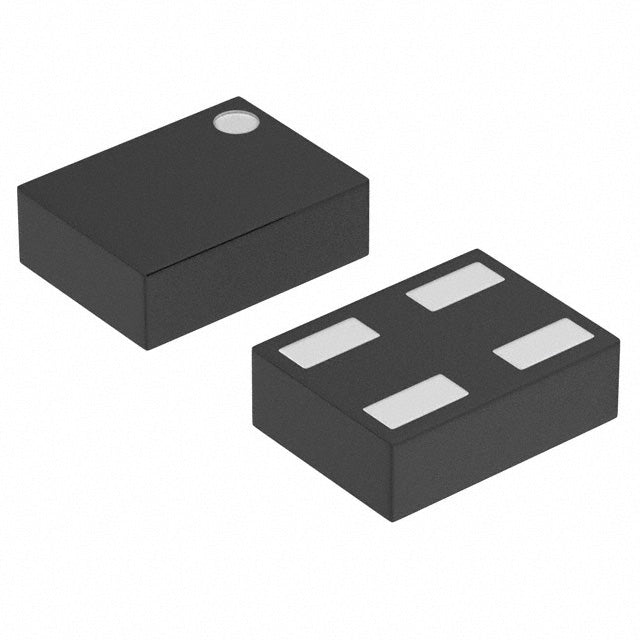

The XC6504A1117R-G is a low dropout linear regulator from Torex Semiconductor, providing a fixed 1.1V output with a maximum current of 150mA. It features an ultra-low quiescent current of 1.27µA, making it ideal for battery-powered and energy-harvesting applications. The device is available in a compact USPN-4B02 package, offering an extremely small footprint for space-constrained designs. With a dropout voltage of 2.05V at full load, it ensures reliable performance in low-voltage systems.
- Ultra-Compact: USPN-4B02 package is one of the smallest available, ideal for miniaturized devices.
- Ultra-Low Power: 1.27µA quiescent current extends battery life significantly.
- Low-Voltage Output: Fixed 1.1V is perfect for advanced low-power digital circuits.
- High Reliability: Stable output ensures consistent operation in critical applications.
Ultra-Low Voltage Logic
The 1.1V output is perfect for powering the latest low-voltage microcontrollers and logic ICs, enabling energy-efficient computing.
Advanced Wearable Sensors
With a tiny USPN-4B02 package and low quiescent current, this LDO is ideal for next-generation wearables requiring minimal power and space.
Energy Harvesting Nodes
In energy harvesting systems, the 1.27µA quiescent current ensures maximum power is available for the load, improving overall system efficiency.
Portable Medical Implants
The compact size and stable 1.1V output make it suitable for medical implants that require reliable, low-voltage power in a small footprint.
IoT Edge Devices
Edge computing devices with low-voltage cores benefit from this regulator's precise output and low power consumption, extending operational life.
- Q: What is the output voltage?
- A: The fixed output voltage is 1.1V.
- Q: What is the maximum output current?
- A: It can deliver up to 150mA.
- Q: What is the input voltage range?
- A: The typical input voltage is 1.1V.
- Q: What is the dropout voltage?
- A: The dropout voltage is 2.05V at 150mA output.
- Q: What is the quiescent current?
- A: The quiescent current is 1.27µA.
- Q: What package is available?
- A: It comes in the USPN-4B02 package.
