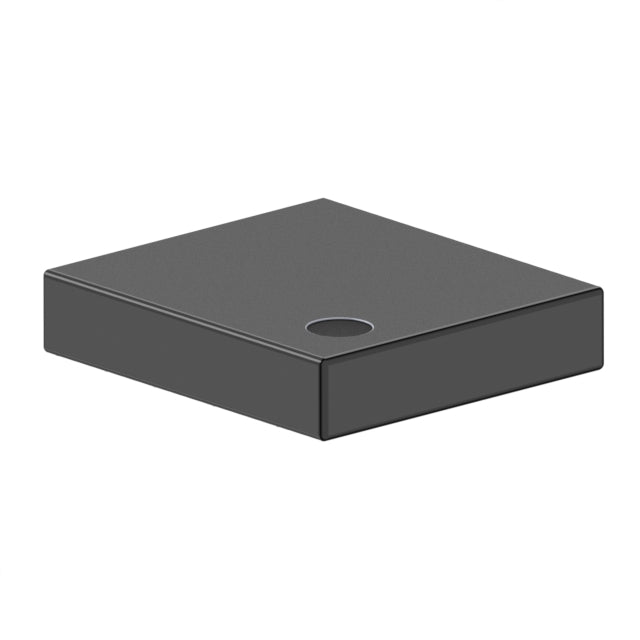

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
XC6806B385DR-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 2.55 AED | Dhs. 2.55 AED |
| 15+ | Dhs. 2.48 AED | Dhs. 37.20 AED |
| 25+ | Dhs. 2.43 AED | Dhs. 60.75 AED |
| 50+ | Dhs. 2.30 AED | Dhs. 115.00 AED |
| 100+ | Dhs. 2.03 AED | Dhs. 203.00 AED |
| N+ | Dhs. 0.41 AED | Price Inquiry |
Couldn't load pickup availability
The XC6806B385DR-G is a high-performance single-cell lithium-ion/polymer battery charger IC from Torex Semiconductor's XC680x series. This advanced charging solution delivers reliable, efficient power management for portable electronics, wearables, and IoT devices.
Key Features
- Single-Cell Li-Ion/Polymer Charging: Optimized for 3.85V battery pack voltage with 385mA maximum charge current
- Programmable Current Control: Constant current charging with programmable features for flexible design integration
- Comprehensive Protection: Built-in over-current, over-temperature, and reverse current fault protection ensures safe operation
- USB Interface: Direct USB connectivity for convenient charging applications
- Wide Operating Range: Functions reliably from -40°C to 85°C ambient temperature with 5.5V maximum supply voltage
- Compact Surface Mount Package: Space-saving 10-PowerUDFN (10-USPB 2.9x2.6mm) package ideal for portable device designs
Applications
The XC6806B385DR-G is perfectly suited for:
- Smartphones and tablets
- Wireless earbuds and Bluetooth headsets
- Wearable fitness trackers and smartwatches
- Portable medical devices
- IoT sensors and connected devices
- Handheld gaming consoles
Technical Advantages
Torex Semiconductor's XC680x series delivers industry-leading performance with precise charge control, minimal heat generation, and robust protection circuitry. The programmable current feature allows designers to optimize charging profiles for specific battery chemistries and capacities, extending battery lifespan and improving overall system reliability.
Quality & Compliance
This component is RoHS compliant and supplied in tape and reel packaging for automated assembly processes, ensuring consistent quality and manufacturing efficiency.
Related Products & Resources
Looking for more power management solutions? Explore our complete selection of Battery Chargers for your embedded and industrial applications. Visit HQICKEY for authentic components with lifecycle support and competitive pricing. Stay updated with the latest industry insights and technical articles on our News & Technical Blog.
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | XC680x |
| Packaging | Tape & Reel (TR) | |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current |
| Fault Protection | Over Current, Over Temperature, Reverse Current |
| Charge Current - Max | 385mA |
| Battery Pack Voltage | 3.85V |
| Voltage - Supply (Max) | 5.5V |
| Interface | USB |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-PowerUDFN |
| Supplier Device Package | 10-USPB (2.9x2.6) |
| ROHS |  |
XC6806B385DR-G.pdf
