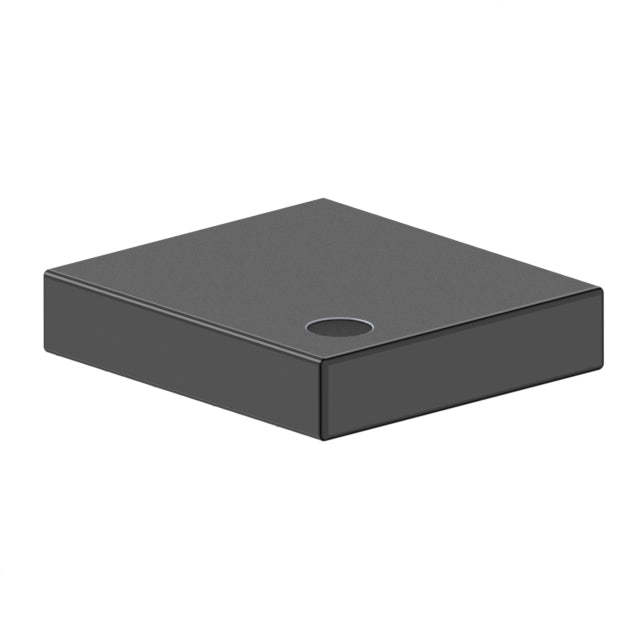

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
XC6806B400DR-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 2.55 AED | Dhs. 2.55 AED |
| 15+ | Dhs. 2.48 AED | Dhs. 37.20 AED |
| 25+ | Dhs. 2.43 AED | Dhs. 60.75 AED |
| 50+ | Dhs. 2.30 AED | Dhs. 115.00 AED |
| 100+ | Dhs. 2.03 AED | Dhs. 203.00 AED |
| N+ | Dhs. 0.41 AED | Price Inquiry |
Couldn't load pickup availability
XC6806B400DR-G - Single-Cell Lithium-Ion Battery Charger IC
The XC6806B400DR-G from Torex Semiconductor is a high-performance single-cell lithium-ion/polymer battery charger IC designed for portable and embedded applications. This compact charging solution features programmable constant current charging up to 385mA, USB interface compatibility, and comprehensive fault protection including over-current, over-temperature, and reverse current protection.
Engineered for reliability and efficiency, the XC6806B400DR-G operates across a wide temperature range from -40°C to 85°C, making it ideal for industrial and consumer electronics applications. The device supports a 4V battery pack voltage and accepts supply voltages up to 5.5V, providing flexible integration options for USB-powered charging circuits.
Key Features & Benefits:
- Programmable Charging Current: Constant current charging with programmable control up to 385mA maximum
- Comprehensive Protection: Built-in over-current, over-temperature, and reverse current fault protection ensures safe charging operation
- USB Interface: Direct USB compatibility simplifies power supply design and integration
- Wide Operating Range: -40°C to 85°C operating temperature for demanding environments
- Compact Package: Surface mount 10-PowerUDFN (10-USPB 2.9x2.6mm) for space-constrained designs
- RoHS Compliant: Environmentally friendly and meets international standards
Typical Applications:
- Portable consumer electronics and wearables
- USB-powered battery charging systems
- Industrial handheld devices and instruments
- IoT sensors and wireless communication modules
- Medical portable equipment
Technical Specifications:
Why Choose HQICKEY?
At HQICKEY, we specialize in providing authentic semiconductor components with guaranteed quality and lifecycle support. Our global supply chain ensures competitive pricing and reliable availability for your embedded and industrial projects. All components are sourced directly from authorized distributors and undergo rigorous quality verification.
Related Products & Resources:
Explore our complete range of Battery Chargers for comprehensive power management solutions. Visit our homepage to discover our full catalog of memory, microprocessors, MCUs, and FPGAs. Stay updated with the latest industry insights and technical articles on our News & Technical Blog.
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | XC680x |
| Packaging | Tape & Reel (TR) | |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current |
| Fault Protection | Over Current, Over Temperature, Reverse Current |
| Charge Current - Max | 385mA |
| Battery Pack Voltage | 4V |
| Voltage - Supply (Max) | 5.5V |
| Interface | USB |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-PowerUDFN |
| Supplier Device Package | 10-USPB (2.9x2.6) |
| ROHS |  |
XC6806B400DR-G.pdf
