Torex Semiconductor Ltd XC6810A42H0R-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 15.58 | Dhs. 15.58 |
| 15+ | Dhs. 15.10 | Dhs. 226.50 |
| 25+ | Dhs. 14.77 | Dhs. 369.25 |
| 50+ | Dhs. 13.95 | Dhs. 697.50 |
| 100+ | Dhs. 12.31 | Dhs. 1,231.00 |
| N+ | Dhs. 2.46 | Price Inquiry |
Request Quote / Inquiry
XC6810A42H0R-G - Advanced Lithium Ion/Polymer Battery Charger IC
The XC6810A42H0R-G from Torex Semiconductor is a highly integrated, programmable battery charger IC designed for single-cell Lithium Ion and Lithium Polymer battery applications. This compact solution delivers precise charging control with programmable current, voltage, and timer features, making it ideal for portable electronics, wearables, IoT devices, and battery-powered industrial equipment. With comprehensive fault protection including over-temperature, over-voltage, reverse current, and short circuit safeguards, this charger IC ensures safe and reliable battery management across demanding operating conditions from -40°C to 85°C.
Applications & Benefits
The XC6810A42H0R-G's ultra-compact 12-WLP package (1.17x1.57mm) and wide input voltage range up to 28V make it an excellent choice for space-constrained designs requiring robust battery management. Its programmable architecture allows engineers to optimize charging profiles for specific battery chemistries and capacities, while the comprehensive protection circuitry ensures long battery life and safe operation. The surface mount design facilitates automated assembly and is fully RoHS compliant for global market requirements.
Related Resources
Looking for more battery management solutions? Browse our complete Battery Chargers collection featuring a wide range of charging ICs for various battery chemistries and applications. Visit HQICKEY homepage for more electronic components including power management, microcontrollers, and passive components. Stay informed with the latest industry insights and technical guides by visiting our technical articles and news blog.
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current, Timer, Voltage |
| Fault Protection | Over Temperature, Over Voltage, Reverse Current, Short Circuit |
| Charge Current - Max | 25mA |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 28V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

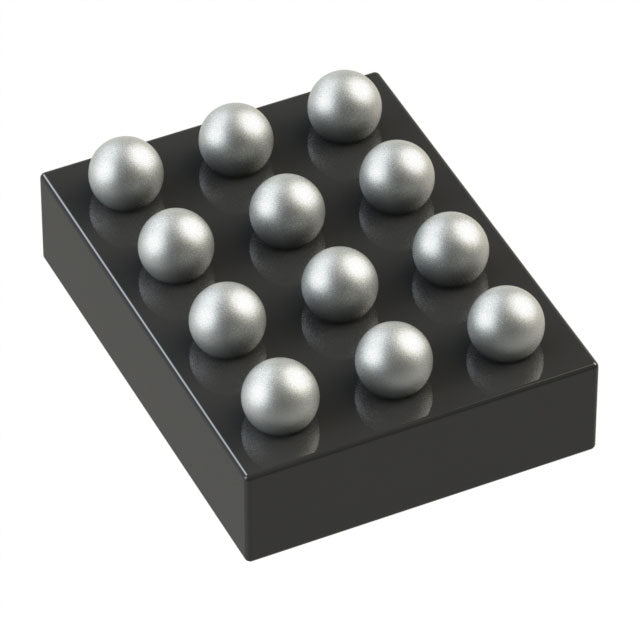

| Package / Case | 12-XFBGA, WLBGA |
| Supplier Device Package | 12-WLP (1.17x1.57) |
| ROHS |  |
XC6810A42H0R-G.pdf
