XC6SLX100T-N3CSG484I

AMD Spartan-6 LXT FPGA - XC6SLX100T-N3CSG484I

The XC6SLX100T-N3CSG484I is a high-performance Spartan-6 LXT FPGA from AMD (formerly Xilinx), delivering 101,261 logic elements in a compact 484-pin CSPBGA package. Designed for demanding applications in aerospace, automotive, industrial automation, and telecommunications, this device combines exceptional logic density with proven reliability.

Key Features

• High Logic Density: 101,261 logic cells across 7,911 CLBs for complex design implementation
• Extensive I/O: 296 user I/O pins supporting multiple high-speed standards
• Memory Resources: 4.94 Mb total block RAM for data buffering and processing
• Industrial Temperature Range: -40°C to +100°C (TJ) for harsh environments

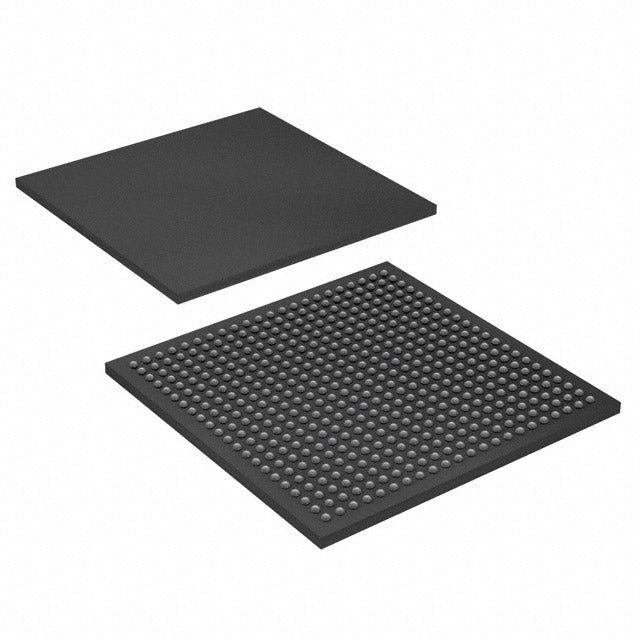

• Compact Package: 484-ball CSPBGA (19x19mm) for space-constrained designs
• Low Power: 1.14V to 1.26V core voltage for efficient operation

Applications

Ideal for motor control, industrial networking, embedded vision systems, test and measurement equipment, and high-reliability aerospace/defense applications requiring long lifecycle support.

Authorized Distribution & Support

We provide 100% authentic AMD components with full manufacturer traceability, documentation, and warranty. All units ship from authorized distributor stock with complete chain-of-custody records. Our technical team offers design-in support, reference designs, and obsolescence management for long-term programs.

Technical Specifications

Product attributes	Property Value
Manufacturer	AMD
Product Series	Spartan®-6 LXT
Packaging	Tray | Tray
Number of LABs/CLBs	7911
Number of Logic Elements/Cells	101261
Total RAM Bits	4939776
Number of I/O	296
Number of Gates	-
Voltage - Supply	1.14V ~ 1.26V
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 100°C (TJ)
Grade	-
Qualification	-
Package / Case	484-FBGA, CSPBGA
Supplier Device Package	484-CSPBGA (19x19)
ROHS
