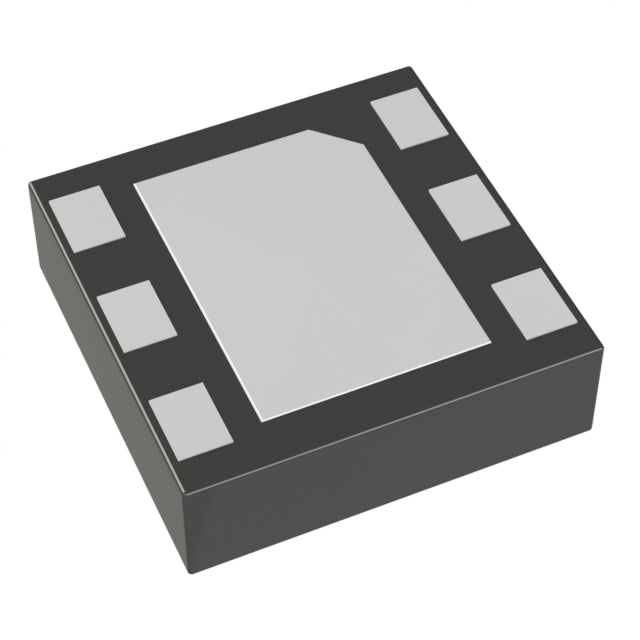

Torex Semiconductor Ltd XC9140C2424R-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.82 | $1.82 |
| 15+ | $0.42 | $6.30 |
| 25+ | $0.41 | $10.25 |
| 50+ | $0.39 | $19.50 |
| 100+ | $0.35 | $35.00 |
| N+ | $0.07 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | XC9140 |
| Packaging | Tape & Reel (TR) | |
| Function | Step-Up |
| Output Configuration | Positive |
| Topology | Boost |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 0.9V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2.4V |
| Voltage - Output (Max) | - |
| Current - Output | 100mA |
| Frequency - Switching | - |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-XDFN Exposed Pad |
| Supplier Device Package | 6-USPEL (1.8x2) |
| ROHS |  |
The Torex XC9140C2424R-G is a synchronous boost converter that provides a fixed 2.4V output from a 0.9V to 5.5V input. With a 100mA maximum output current, it is designed for low-power battery applications. The 6-XDFN package minimizes PCB footprint, while the high-efficiency architecture ensures minimal power loss. Ideal for BLE modules, wearables, and portable instruments.
- Wide Input Range (0.9V-5.5V): Supports various battery chemistries including alkaline, NiMH, and single-cell Li-ion.
- Fixed 2.4V Output: Perfect for logic and RF circuits requiring a precise 2.4V rail without external feedback resistors.
- 100mA Output Capability: Sufficient for low-power MCUs, sensors, and wireless transceivers.
- Small 6-XDFN Package: Enables ultra-compact designs for portable and wearable electronics.
Bluetooth Low Energy Modules
BLE SoCs often require a 2.4V supply for optimal RF performance. This boost converter provides a stable 2.4V rail from a 3V coin cell or 2xAA batteries, ensuring reliable wireless communication.
Portable Gaming Devices
For retro handhelds or simple gaming controllers, the 100mA output is sufficient for low-power microcontrollers and haptic drivers, while the 0.9V start-up allows operation from nearly exhausted batteries.
Smart Home Sensors
In battery-powered door/window sensors or thermostats, the wide input range and fixed 2.4V output simplify power supply design, ensuring consistent operation over the battery's lifetime.
Electronic Shelf Labels
ESL displays require a stable voltage for e-paper drivers. The compact XDFN package and 100mA capability make this IC ideal for space-constrained label modules.
Fitness Trackers
With low quiescent current and high efficiency at light loads, this converter extends battery life in fitness bands, powering the heart-rate sensor and display from a single Li-ion cell.
- Q: What type of converter is the XC9140C2424R-G?
- A: It is a Boost (step-up) DC-DC converter IC.
- Q: What is the input voltage range?
- A: The input voltage range is from 0.9V to 5.5V.
- Q: What is the output voltage?
- A: The fixed output voltage is 2.4V.
- Q: What is the maximum output current?
- A: The maximum output current is 100mA.
- Q: What package is available?
- A: It comes in a 6-XDFN Exposed Pad package.
- Q: What is the switching frequency?
- A: The switching frequency is not specified in the provided data.
