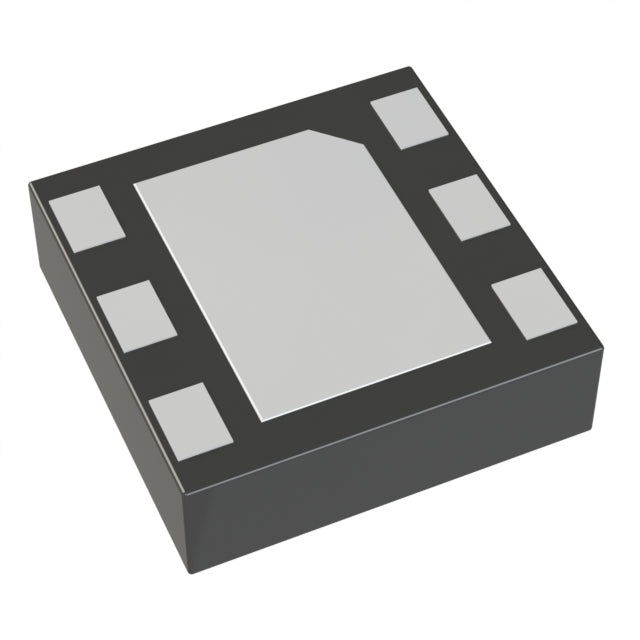

Torex Semiconductor Ltd XC9140C5024R-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.82 | $1.82 |
| 15+ | $0.42 | $6.30 |
| 25+ | $0.41 | $10.25 |
| 50+ | $0.39 | $19.50 |
| 100+ | $0.35 | $35.00 |
| N+ | $0.07 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | XC9140 |
| Packaging | Tape & Reel (TR) | |
| Function | Step-Up |
| Output Configuration | Positive |
| Topology | Boost |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 0.9V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Current - Output | 100mA |
| Frequency - Switching | - |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-XDFN Exposed Pad |
| Supplier Device Package | 6-USPEL (1.8x2) |
| ROHS |  |
The XC9140C5024R-G is a synchronous boost converter from Torex Semiconductor, providing a fixed 5V output from a low-voltage input source. With an input range of 0.9V to 5.5V and a maximum output current of 100mA, it is designed for battery-powered applications requiring a stable 5V bus. The device is housed in a compact 6-XDFN package, making it suitable for portable and space-constrained designs.
- Wide Input Range: Accepts inputs from 0.9V to 5.5V, compatible with various battery chemistries.
- Stable 5V Output: Provides a regulated 5V rail, ideal for powering USB and logic circuits.
- High Efficiency: Synchronous rectification reduces power loss, enhancing battery life.
- Small Package: The 6-XDFN package saves board space in compact devices.
5V USB Peripheral Power
Many small USB peripherals require a 5V supply. The XC9140C5024R-G can generate this from a single Li-ion cell (3.0-4.2V) or two alkaline batteries, enabling portable USB-powered devices.
Portable Audio Equipment
Headphone amplifiers and portable DACs often need a clean 5V rail. This boost converter provides a stable, low-noise output, improving audio performance while operating from a low battery voltage.
Battery-Powered Industrial Sensors
Industrial sensors with 5V interfaces can be powered from a 1.5V or 3V battery. The converter's high efficiency and low quiescent current make it ideal for remote monitoring nodes.
Handheld Test Instruments
Multimeters and handheld scopes can use this converter to generate a precise 5V reference or supply rail from a 9V battery or 2-cell pack, ensuring accurate measurements.
LED Flash Drivers
In compact cameras or flashlights, a 5V rail can drive high-brightness LEDs. The boost converter ensures consistent brightness as the battery discharges.
- Q: What type of converter is the XC9140C5024R-G?
- A: It is a synchronous step-up (Boost) DC-DC converter.
- Q: What is the input voltage range?
- A: The input voltage range is from 0.9V to 5.5V.
- Q: What is the output voltage?
- A: The output voltage is fixed at 5V.
- Q: What is the maximum output current?
- A: The maximum output current is 100mA.
- Q: What package is available?
- A: It is available in a 6-XDFN Exposed Pad package.
- Q: What is a typical application?
- A: It is suitable for powering 5V logic or USB devices from a single-cell battery.
