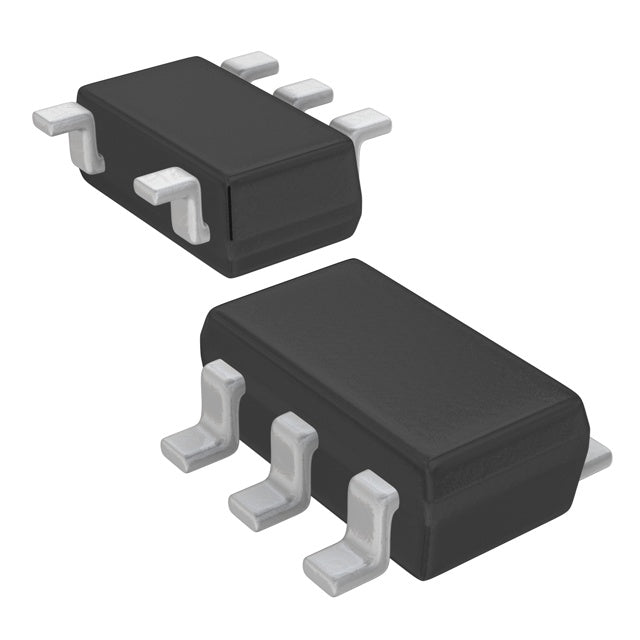

Torex Semiconductor Ltd XC9140C502MR-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.82 | $1.82 |
| 15+ | $0.42 | $6.30 |
| 25+ | $0.41 | $10.25 |
| 50+ | $0.39 | $19.50 |
| 100+ | $0.35 | $35.00 |
| N+ | $0.07 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | XC9140 |
| Packaging | Tape & Reel (TR) | |
| Function | Step-Up |
| Output Configuration | Positive |
| Topology | Boost |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 0.9V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Current - Output | 100mA |
| Frequency - Switching | - |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-25 |
| ROHS |  |
The Torex XC9140C502MR-G is a synchronous boost DC-DC converter that provides a fixed 5V output from an input voltage between 0.9V and 5.5V. With a maximum output current of 100mA, it is well-suited for powering USB OTG devices, 5V logic circuits, and portable audio equipment. The device comes in a compact SC-74A (SOT-753) package, enabling space-efficient designs. Its high-efficiency synchronous architecture helps extend battery life in portable applications.
- Fixed 5V Output: Ideal for USB and standard 5V logic rails, eliminating the need for external feedback resistors.
- Low 0.9V Startup: Can operate from nearly depleted batteries, maximizing energy extraction.
- Synchronous Rectification: Improves efficiency compared to asynchronous designs, reducing heat and extending battery life.
- Small Footprint: SC-74A/SOT-753 package fits into compact consumer and industrial designs.
USB On-the-Go (OTG) Power
When a portable device needs to provide 5V to a USB peripheral, this boost converter can generate the required 5V rail from a 3.7V Li-ion battery, enabling OTG functionality in smartphones and tablets.
5V Logic and Sensor Supply
Many industrial sensors and logic ICs require a 5V supply. The XC9140C502MR-G can step up from a lower battery voltage to provide a stable 5V rail in remote monitoring equipment.
Battery-Powered Audio Amplifiers
For portable speakers or headphone amplifiers, a regulated 5V supply ensures consistent audio output power and reduces distortion as the battery discharges.
Arduino and Maker Projects
In battery-powered Arduino projects, this converter can boost a 2xAA battery pack (2.4V-3.0V) to 5V, allowing the use of standard 5V shields and sensors.
Portable Chargers (Power Banks)
As a secondary boost stage, it can provide a clean 5V output for charging small devices from a single-cell battery, with the 100mA limit suitable for low-power wearables.
Automotive Sensor Interfaces
In automotive environments where the battery voltage can drop during cranking, the wide input range ensures a stable 5V output for sensors and CAN transceivers.
- Q: What type of converter is the XC9140C502MR-G?
- A: It is a synchronous step-up (Boost) DC-DC converter IC.
- Q: What is the input voltage range?
- A: The input voltage range is from 0.9V to 5.5V.
- Q: What is the output voltage?
- A: The fixed output voltage is 5V.
- Q: What is the maximum output current?
- A: The maximum output current is 100mA.
- Q: What is the switching frequency?
- A: The switching frequency is not specified in the provided data.
- Q: What package is available?
- A: It is available in SC-74A and SOT-753 packages.
