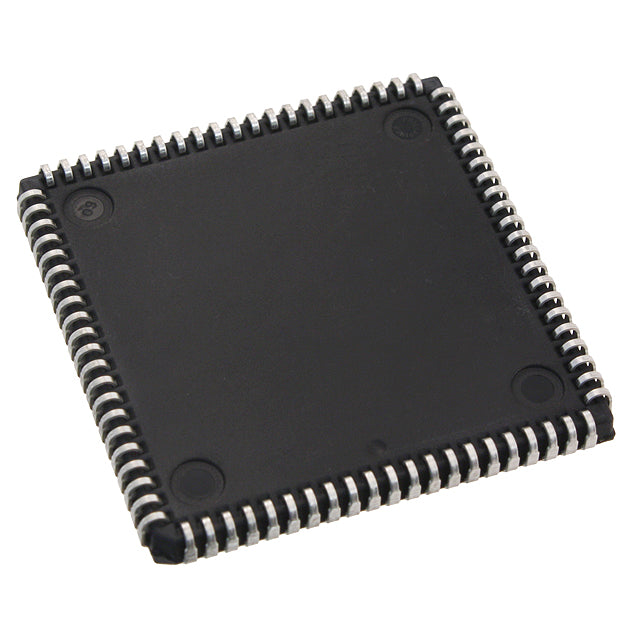

AMD XCS05XL-4PC84C

AMD Spartan-XL XCS05XL-4PC84C FPGA Overview

The XCS05XL-4PC84C is a high-performance field-programmable gate array (FPGA) from AMD's proven Spartan-XL series, engineered for industrial, automotive, and embedded system applications requiring reliable logic integration and flexible I/O configuration.

Key Features

• 5000 Logic Gates – Sufficient capacity for moderate-complexity digital designs
• 61 I/O Pins – Flexible connectivity for interfacing with peripherals and external systems
• 3200 RAM Bits – On-chip memory for buffering and data storage
• Surface Mount 84-PLCC Package – Compact footprint (29.31×29.31mm) for space-constrained PCB layouts
• Industrial Temperature Range – Operates reliably from 0°C to 85°C (junction temperature)
• 3V to 3.6V Supply Voltage – Compatible with standard 3.3V logic systems

Applications

This FPGA is well-suited for control logic, signal processing, protocol conversion, sensor interfacing, and custom digital circuit prototyping in industrial automation, communications equipment, and aerospace systems.

Note: This product ships in tray packaging and is suitable for automated pick-and-place assembly processes.
