AMD XCSU150P-1SBVG784E
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $219.69 | $219.69 |
| 15+ | $212.75 | $3,191.25 |
| 25+ | $208.13 | $5,203.25 |
| 50+ | $196.56 | $9,828.00 |
| 100+ | $173.44 | $17,344.00 |
| N+ | $34.69 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | AMD |
| Product Series | Spartan® UltraScale+™ |
| Packaging | Tray |
| Number of LABs/CLBs | - |
| Number of Logic Elements/Cells | 137813 |
| Total RAM Bits | 6186598 |
| Number of I/O | 356 |
| Voltage - Supply | 0.825V ~ 0.876V |
| Operating Temperature | 0°C ~ 100°C (TJ) |
| Memory Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 784-BGA, FCBGA |
| Supplier Device Package | 784-FCBGA (23x23) |
| ROHS |  |

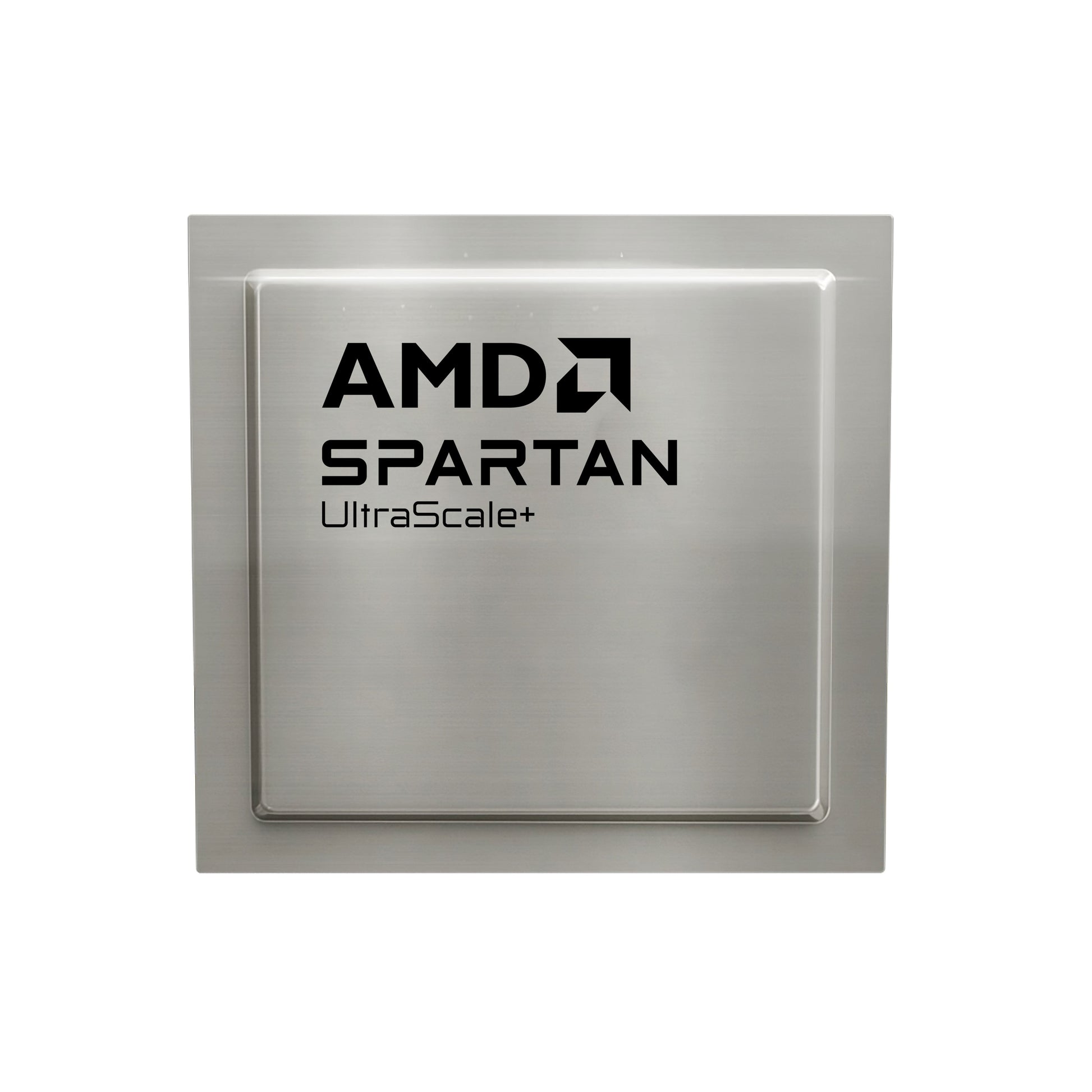

AMD Spartan® UltraScale+™ FPGA - XCSU150P-1SBVG784E
The XCSU150P-1SBVG784E is a high-performance FPGA from AMD's Spartan® UltraScale+™ series, engineered for demanding embedded applications requiring substantial logic resources and exceptional I/O flexibility. This industrial-grade device delivers outstanding performance with 137,813 logic elements and 356 I/O pins in a compact, space-efficient 784-FCBGA package.
Key Features & Benefits
- 137,813 Logic Elements/Cells - Extensive programmable logic capacity enables complex digital designs, signal processing algorithms, and multi-function system integration
- 6,186,598 Total RAM Bits - Ample on-chip memory for buffering, data caching, and memory-intensive applications without external RAM
- 356 I/O Pins - Flexible connectivity options support diverse interfaces including PCIe, Ethernet, USB, LVDS, and custom protocols
- Industrial Temperature Range (0°C to 100°C TJ) - Reliable operation in harsh environments including factory floors, outdoor installations, and automotive applications
- 784-FCBGA Package (23x23mm) - Compact surface mount design optimizes board space while maintaining excellent thermal performance
- RoHS Compliant - Lead-free, environmentally responsible manufacturing meets global regulatory standards
- 0.825V ~ 0.876V Supply Voltage - Low power consumption reduces heat generation and operating costs
Ideal Applications
This versatile FPGA excels in:
- Industrial Automation - PLC controllers, robotics, factory automation systems
- Embedded Vision Systems - Real-time image processing, machine vision, quality inspection
- Motor Control - Advanced servo drives, multi-axis motion control, power electronics
- Communications Infrastructure - Protocol converters, network processors, software-defined radio
- Test & Measurement Equipment - High-speed data acquisition, signal generation, protocol analysis
- High-Performance Computing - Hardware acceleration, parallel processing, custom compute engines
Why Choose AMD Spartan UltraScale+?
AMD's Spartan UltraScale+ architecture combines proven FPGA technology with advanced 16nm FinFET process technology, delivering up to 2x better power efficiency compared to previous generations. The UltraScale+ platform provides exceptional DSP performance, flexible I/O standards support, and seamless integration with AMD's Vivado Design Suite for rapid development.
What's Included
Each XCSU150P-1SBVG784E FPGA is supplied in protective tray packaging, ready for automated pick-and-place assembly. Full technical documentation, datasheets, and design resources are available through AMD's support portal.
Design Support & Resources
Develop faster with AMD Vivado Design Suite, comprehensive IP libraries, reference designs, and active community support. Access application notes, evaluation boards, and technical documentation to accelerate your time-to-market.
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
