XCSU55P-L1SBVF784I

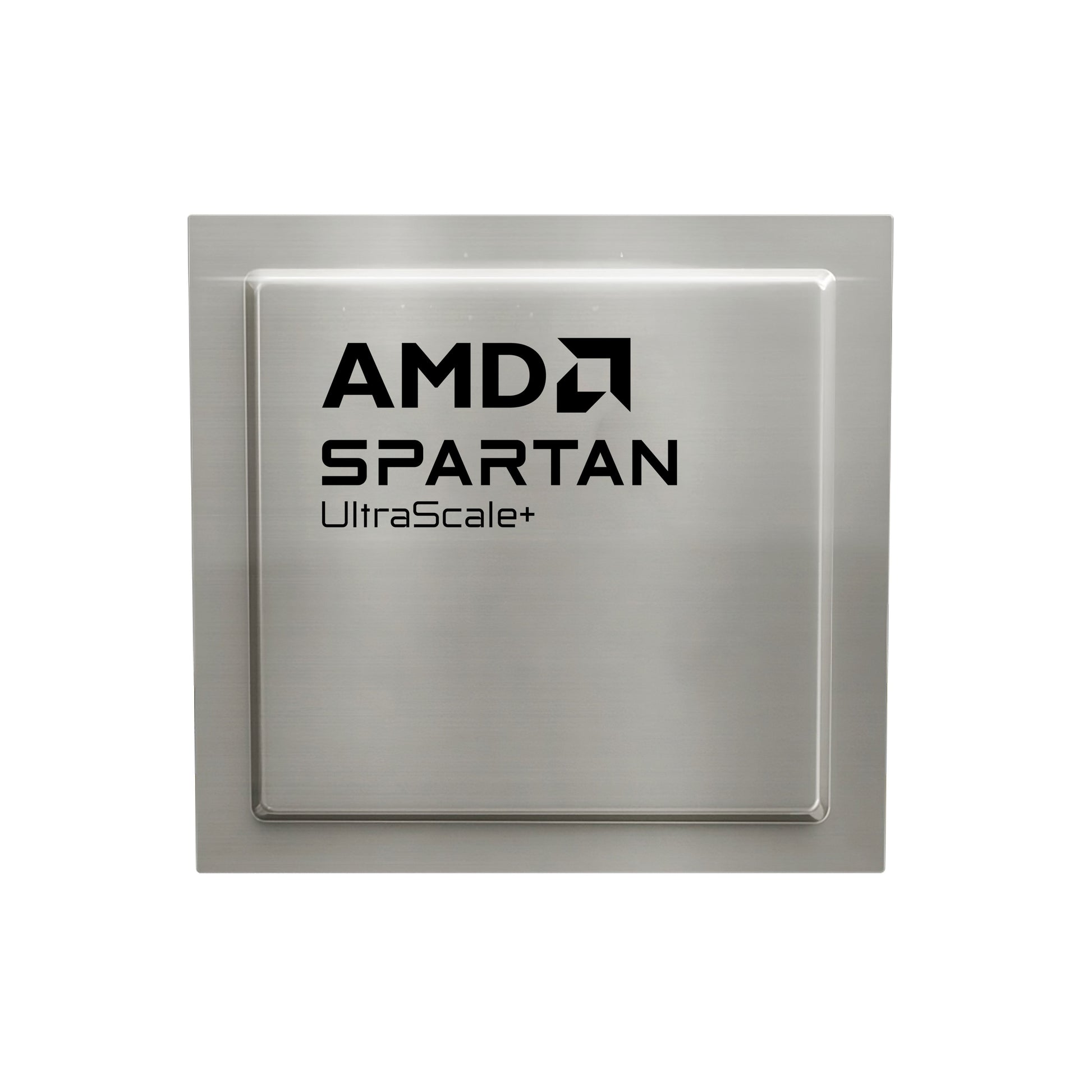

AMD Spartan® UltraScale+™ FPGA - XCSU55P-L1SBVF784I

The XCSU55P-L1SBVF784I is a high-performance Field-Programmable Gate Array (FPGA) from AMD's Spartan® UltraScale+™ series, designed for demanding embedded applications requiring flexibility, reliability, and cost-effectiveness.

Key Features

• 52,500 Logic Elements - Ample programmable logic for complex digital designs
• 2.62 Mb Block RAM - Extensive on-chip memory for data buffering and processing
• 352 I/O Pins - High pin count for versatile connectivity
• Industrial Temperature Range - Operates reliably from -40°C to 100°C (TJ)
• 784-FCBGA Package - Compact 23x23mm footprint for space-constrained designs
• Low Power Supply - 0.825V to 0.876V core voltage for energy efficiency

Ideal Applications

This FPGA is perfect for industrial automation, embedded vision systems, motor control, signal processing, communications infrastructure, and prototyping advanced digital circuits.

Technical Specifications

Product attributes	Property Value
Manufacturer	AMD
Product Series	Spartan® UltraScale+™
Packaging	Tray
Number of LABs/CLBs	-
Number of Logic Elements/Cells	52500
Total RAM Bits	2621440
Number of I/O	352
Voltage - Supply	0.825V ~ 0.876V
Operating Temperature	-40°C ~ 100°C (TJ)
Memory Type	Surface Mount
Grade	-
Qualification	-
Package / Case	784-BGA, FCBGA
Supplier Device Package	784-FCBGA (23x23)
ROHS

RoHS Compliant - Meets environmental standards for hazardous substance restrictions.
