XCZU2EG-1SFVA625E

AMD XCZU2EG-1SFVA625E Zynq UltraScale+ MPSoC EG – High-Performance FPGA SoC for Industrial & Aerospace Applications

The AMD XCZU2EG-1SFVA625E is an enterprise-grade System-on-Chip (SoC) from the Zynq UltraScale+ MPSoC EG series, delivering exceptional performance through the integration of programmable FPGA logic with embedded ARM processing cores. Engineered for mission-critical applications in industrial automation, automotive ADAS, aerospace/defense, and communications infrastructure.

Core Performance Features

• Quad-Core ARM Cortex-A53 MPCore with CoreSight debug + Dual ARM Cortex-R5 real-time processors for deterministic control
• 103,000+ Logic Cells FPGA fabric enabling custom hardware acceleration and parallel processing
• ARM Mali-400 MP2 GPU for embedded graphics and vision processing
• 256KB On-Chip RAM with integrated DMA controllers and watchdog timer
• Multi-Speed Operation: 500MHz, 600MHz, and 1.2GHz clock domains for optimized power/performance

Connectivity & I/O

• Industrial Protocols: CANbus, Ethernet (GbE-capable), I2C, SPI, UART/USART
• High-Speed Interfaces: USB OTG, MMC/SD/SDIO, EBI/EMI external memory interface
• Flexible I/O: Programmable logic I/O for custom protocol implementation

Reliability & Compliance

• Industrial Temperature Range: 0°C to 100°C (TJ) for harsh-environment deployment
• RoHS Compliant: Lead-free, environmentally certified
• Active Production Status: Long-term availability guaranteed

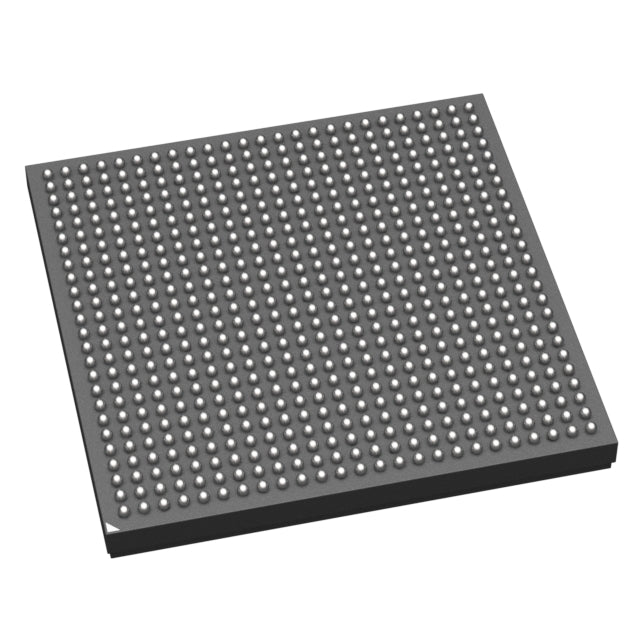

• 625-FCBGA Package: 21mm × 21mm footprint for space-constrained designs

Target Applications

This MPSoC is architected for applications requiring real-time processing combined with FPGA acceleration:

• Embedded Vision Systems: Machine vision, object detection, image processing pipelines
• Industrial Automation: Motion control, robotics, PLC replacement, factory automation
• Automotive ADAS: Sensor fusion, camera processing, radar/lidar interfaces
• Aerospace & Defense: Avionics, secure communications, signal processing
• Communications Infrastructure: 5G base stations, network processing, protocol offload

Why Choose XCZU2EG-1SFVA625E?

This MPSoC delivers the optimal balance of processing power, FPGA flexibility, and industrial reliability. The heterogeneous architecture allows you to partition real-time control tasks to the Cortex-R5 cores, run Linux/RTOS on the Cortex-A53 cluster, and implement custom hardware acceleration in the FPGA fabric—all on a single chip with deterministic inter-processor communication.

Documentation & Support: Full AMD Vivado Design Suite compatibility, comprehensive reference designs, and long-term technical support ensure rapid development and production confidence.

All specifications are subject to change. Please refer to the official AMD datasheet for complete technical details, electrical characteristics, and latest silicon revisions.

No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
