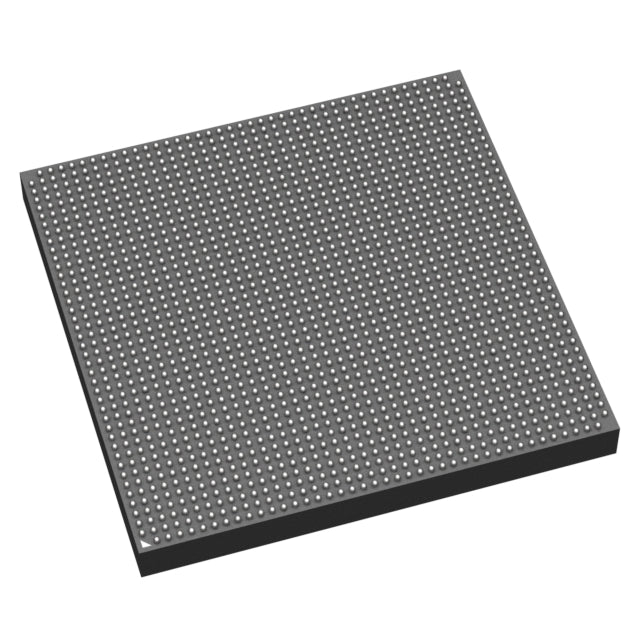

AMD XCZU46DR-L2FFVH1760I

AMD Zynq UltraScale+ RFSoC XCZU46DR-L2FFVH1760I - High-Performance RF System-on-Chip

The AMD XCZU46DR-L2FFVH1760I represents the pinnacle of RF System-on-Chip technology, combining high-performance processing with advanced FPGA capabilities. This cutting-edge component delivers exceptional performance for aerospace, telecommunications, industrial automation, and medical device applications requiring robust, long-lifecycle semiconductor solutions with guaranteed traceability and reliability.

Key Features & Benefits

• Dual Processing Architecture: Quad ARM Cortex-A53 MPCore with CoreSight and Dual ARM Cortex-R5 processors deliver exceptional computational power for demanding real-time applications
• Massive Logic Capacity: 930K+ logic cells provide extensive programmable resources for complex signal processing and custom hardware acceleration
• Industrial-Grade Reliability: Extended operating temperature range (-40°C to 100°C junction temperature) ensures reliable performance in demanding environments including aerospace, defense, and industrial automation
• Comprehensive Connectivity: Integrated CANbus, Ethernet, PCIe, USB OTG, I2C, SPI, UART/USART, and MMC/SD/SDIO interfaces enable seamless system integration
• High-Speed Performance: Dual clock speeds (533MHz and 1.333GHz) optimize power efficiency and processing performance for diverse workloads
• Active Production Status: Guaranteed long-term availability and full traceability for critical applications with extended lifecycle requirements
• 256KB On-Chip RAM: Integrated memory for low-latency data processing and buffering
• Advanced Peripherals: DDR memory controller, DMA engines, and PCIe interface for high-bandwidth data transfer

Target Applications & Use Cases

The XCZU46DR-L2FFVH1760I is engineered for advanced RF and signal processing applications across multiple industries:

• 5G Wireless Infrastructure: Massive MIMO, beamforming, and software-defined radio implementations
• Aerospace & Defense: Radar systems, electronic warfare, secure communications, and avionics
• Test & Measurement: High-speed data acquisition, signal analysis, and protocol testing equipment
• Software-Defined Radio (SDR): Flexible, reconfigurable radio platforms for research and commercial applications
• High-Performance Embedded Computing: Edge AI, machine learning acceleration, and real-time data processing
• Medical Imaging: Ultrasound, MRI signal processing, and diagnostic equipment
• Industrial Automation: Motion control, machine vision, and predictive maintenance systems

Why Choose AMD Zynq UltraScale+ RFSoC?

The Zynq UltraScale+ RFSoC family combines the flexibility of programmable logic with the performance of high-speed processing cores and integrated RF data converters. This unique architecture enables system designers to implement complete RF signal chains on a single chip, reducing board complexity, power consumption, and time-to-market while improving system reliability and performance.

Quality & Compliance

RoHS Compliant - Meets environmental and safety standards for global deployment. Fully traceable with comprehensive documentation for quality assurance and regulatory compliance in aerospace, medical, and industrial applications.

Long-Term Availability & Support

As an authorized distributor, we provide guaranteed long-term availability, full traceability, and comprehensive technical support for the XCZU46DR-L2FFVH1760I. Our value-added services include design-in support, lifecycle management, and obsolescence mitigation strategies to ensure your critical applications remain supported throughout their operational lifetime.

• XCZU46DR-L2FFVH1760I.pdf
