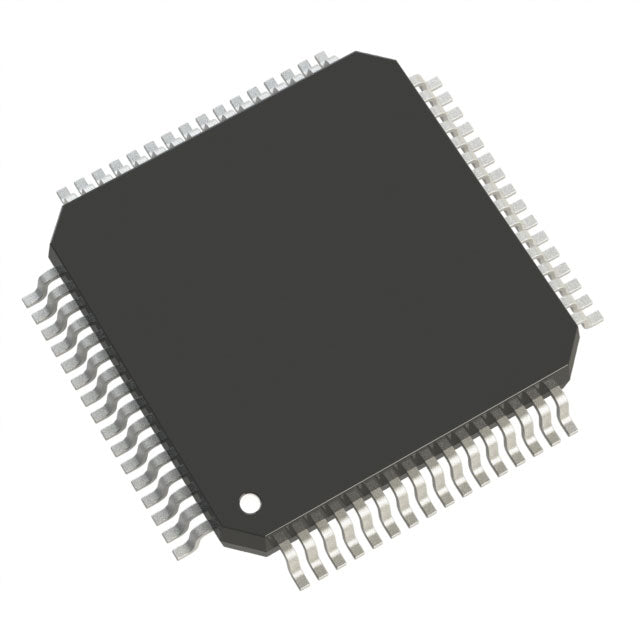

Infineon Technologies XMC1404F064X0064AAXUMA1
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.20 | $3.20 |
| 15+ | $3.10 | $46.50 |
| 25+ | $3.03 | $75.75 |
| 50+ | $2.86 | $143.00 |
| 100+ | $2.53 | $253.00 |
| N+ | $0.51 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | XMC1000 |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | ARM® Cortex®-M0 |
| Core Size | 32-Bit Single-Core |
| Speed | 48MHz |
| Connectivity | CANbus, I2C, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, I2S, LED, POR, PWM, WDT |
| Number of I/O | 48 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 12x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-LQFP-64-26 |
| Package / Case | 64-LQFP |
| ROHS |  |
The XMC1404F064X0064AA is a 32-bit microcontroller from Infineon Technologies, powered by an ARM Cortex-M0 core at 48 MHz. It operates from 1.8V to 5.5V, making it versatile for battery and industrial applications. The device features 64KB of flash and 16KB of SRAM, along with specialized peripherals like I2S for audio, LED control, PWM, and watchdog timer. Housed in a 64-LQFP package, it operates from -40°C to 105°C, ideal for consumer and industrial products.
- Integrated LED control: Dedicated hardware simplifies LED dimming and effects, reducing CPU load and code complexity.
- Audio interface (I2S): Enables high-quality audio streaming for voice and sound applications.
- Wide voltage range: 1.8V to 5.5V supports both battery and 5V logic systems.
- Compact 64-LQFP: Offers ample I/O while maintaining a small footprint for space-constrained designs.
- Reliable operation: Brown-out detect and WDT ensure stable performance in noisy environments.
LED Lighting Control
The dedicated LED control peripheral and PWM channels enable smooth dimming and color mixing for RGB LED fixtures.
Audio Processing
The I2S interface allows direct connection to audio codecs for voice prompts or sound generation in consumer electronics.
Industrial Sensors
With a wide voltage range and robust peripherals, it can interface with various analog and digital sensors in factory automation.
Smart Home Devices
Its low power and integrated features make it suitable for smart thermostats, lighting controllers, and security panels.
Motor Control (Small Appliances)
PWM and WDT support simple motor control for fans, pumps, and kitchen appliances.
Human-Machine Interface (HMI)
LED control and I2S can drive indicator lights and audio feedback for user interfaces in appliances.
- Q: What core does the XMC1404 use?
- A: It is based on the ARM Cortex-M0 processor running at up to 48 MHz.
- Q: What is the supply voltage range?
- A: It operates from 1.8V to 5.5V, offering flexibility for various power supplies.
- Q: How much flash and RAM are included?
- A: It has 64KB of flash and 16KB of SRAM.
- Q: What special features does it have?
- A: It includes I2S for audio, LED control, PWM, brown-out detect, and watchdog timer.
- Q: What is the package and temperature range?
- A: It comes in a 64-LQFP package and operates from -40°C to 105°C.
