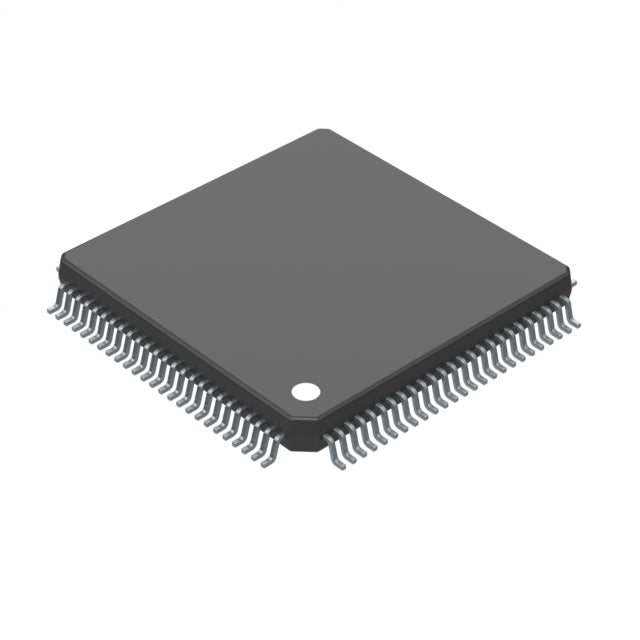

Infineon Technologies XMC7100D-F100K4160AA
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $16.20 | $16.20 |
| 15+ | $15.69 | $235.35 |
| 25+ | $15.35 | $383.75 |
| 50+ | $14.49 | $724.50 |
| 100+ | $12.79 | $1,279.00 |
| N+ | $2.56 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | XMC7000 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M0+, ARM® Cortex®-M7 |
| Core Size | 32-Bit Dual-Core |
| Speed | 100MHz, 250MHz |
| Connectivity | CANbus, Ethernet, FIFO, I2C, IrDA, MMC/SD/SDIO, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, Crypto - AES, DMA, LVD, POR, PWM, SHA, Temp Sensor, TRNG, WDT |
| Number of I/O | 72 |
| Program Memory Size | 4.063MB (4.063M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 256K x 8 |
| RAM Size | 768K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 37x12b SAR |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-TEQFP (14x14) |
| Package / Case | 100-LQFP Exposed Pad |
| ROHS |  |
The Infineon XMC7100D is a powerful dual-core 32-bit microcontroller featuring an ARM Cortex-M0+ (100MHz) and Cortex-M7 (250MHz). It offers 4.063MB of flash and 768KB of RAM, providing exceptional performance for demanding applications. With a supply voltage range of 2.7V to 5.5V and an extended temperature range of -40°C to +125°C, it is built for harsh environments. The device includes advanced security features (AES, SHA, TRNG) and a comprehensive set of peripherals, all in a 100-LQFP exposed pad package.
- Dual-Core Performance: Combines high-performance M7 with efficient M0+ for optimized task handling.
- Hardware Security: AES, SHA, and TRNG ensure secure data transmission and storage.
- Wide Voltage Range: 2.7V to 5.5V supports various power supply designs.
- Extended Temperature: -40°C to +125°C for automotive and industrial use.
- Large Memory: 4.063MB flash and 768KB RAM for complex applications.
Automotive Control Units
The dual-core architecture and 125°C operating temperature make it ideal for engine control and transmission systems.
Industrial Robotics
High-speed Cortex-M7 core handles complex motion control, while the M0+ manages communication protocols.
Secure IoT Gateways
Integrated AES/SHA/TRNG provides hardware security for encrypted communications and secure boot.
Smart Grid Infrastructure
Wide voltage range (2.7V-5.5V) and robust features ensure reliable operation in power distribution systems.
Advanced Motor Drives
High-resolution PWM and fast ADC enable precise control of servo motors and drives.
Edge AI Applications
The powerful M7 core can run lightweight neural networks for predictive maintenance.
- Q: What cores does the XMC7100D use?
- A: It features a dual-core design with ARM Cortex-M0+ and Cortex-M7, running at 100MHz and 250MHz respectively.
- Q: What is the program memory size?
- A: It has 4.063MB of flash and 768KB of RAM.
- Q: What is the operating temperature range?
- A: It operates from -40°C to +125°C, suitable for extreme environments.
- Q: Does it have security features?
- A: Yes, it includes AES, SHA, TRNG, and crypto acceleration for secure applications.
