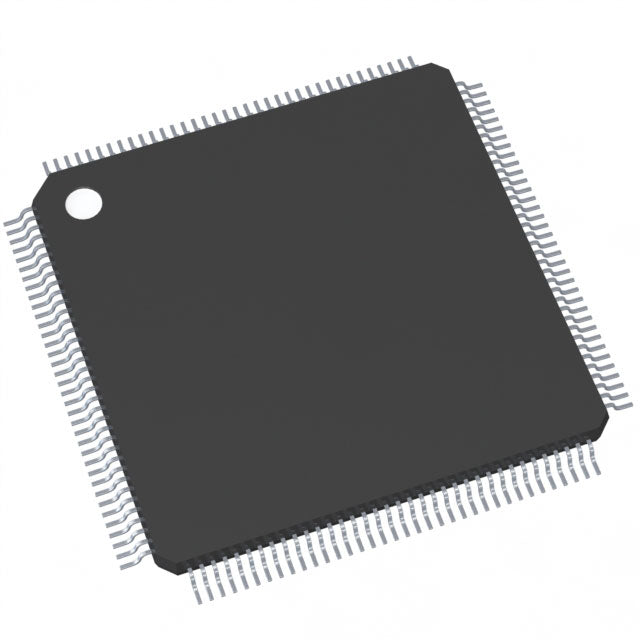

Infineon Technologies XMC7100D-F144K4160AA
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $18.59 | $18.59 |
| 15+ | $18.00 | $270.00 |
| 25+ | $17.61 | $440.25 |
| 50+ | $16.63 | $831.50 |
| 100+ | $14.68 | $1,468.00 |
| N+ | $2.94 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | XMC7000 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M0+, ARM® Cortex®-M7 |
| Core Size | 32-Bit Dual-Core |
| Speed | 100MHz, 250MHz |
| Connectivity | CANbus, Ethernet, FIFO, I2C, IrDA, MMC/SD/SDIO, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, Crypto - AES, DMA, LVD, POR, PWM, SHA, Temp Sensor, TRNG, WDT |
| Number of I/O | 116 |
| Program Memory Size | 4.063MB (4.063M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 256K x 8 |
| RAM Size | 768K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 52x12b SAR |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 144-TEQFP (20x20) |
| Package / Case | 144-LQFP Exposed Pad |
| ROHS |  |
The Infineon XMC7100D is a high-performance dual-core microcontroller combining an ARM Cortex-M7 at 250MHz and a Cortex-M0+ at 100MHz. It offers 4MB flash and 768KB RAM, with a wide 2.7V-5.5V supply range. Built for industrial and automotive applications, it integrates advanced security features like AES, SHA, and TRNG, along with comprehensive analog and PWM peripherals.
- Dual-core performance: 250MHz M7 for compute-intensive tasks, M0+ for low-power I/O handling.
- Wide voltage range: 2.7V-5.5V simplifies power supply design in noisy environments.
- Enhanced security: Hardware crypto and TRNG protect firmware and data.
- High-temperature operation: Up to 125°C suitable for under-hood automotive.
Industrial Motor Control
With dual PWM timers and 250MHz M7 core, it handles complex FOC algorithms for servo drives.
EV Charging Stations
5.5V I/O tolerance and robust ADC enable direct sensing of high-voltage rails with isolation.
Smart Grid Meters
Low-power modes and 4MB flash store extensive logging data while maintaining real-time metering.
Robotics Controllers
Multiple communication interfaces and DMA offload the CPU for multi-axis motion planning.
Medical Monitoring Devices
Operating temperature up to 125°C and TRNG support secure patient data transmission.
Automotive Body Electronics
Brown-out detection and LVD ensure reliable operation in harsh vehicle environments.
- Q: What is the maximum clock speed of the XMC7100D?
- A: The dual-core design runs at 250MHz (Cortex-M7) and 100MHz (Cortex-M0+).
- Q: What is the operating voltage range?
- A: It operates from 2.7V to 5.5V, suitable for industrial and automotive.
- Q: Does it support secure boot?
- A: Yes, it includes AES, SHA, and TRNG for hardware security.
- Q: What package is available?
- A: 144-LQFP with exposed pad for thermal management.
