Z8F2401VN020EC

Zilog Z8F2401VN020EC - High-Performance 8-Bit Microcontroller

The Z8F2401VN020EC from Zilog's Encore!® series is a powerful 8-bit microcontroller designed for embedded applications requiring reliable performance and versatile connectivity. Built on the eZ8 core architecture, this MCU operates at 20MHz and features 24KB of Flash memory, making it ideal for industrial control, automotive systems, and IoT applications.

Key Features & Benefits

• High-Speed Processing: 20MHz eZ8 core delivers responsive performance for real-time applications
• Generous Memory: 24KB Flash program memory and 2K x 8 RAM for complex firmware
• Rich Connectivity: I2C, IrDA, SPI, and UART/USART interfaces for seamless integration
• Advanced Peripherals: Includes Brown-out Detect/Reset, DMA, POR, PWM, and Watchdog Timer
• Flexible I/O: 31 programmable I/O pins for versatile interfacing
• Precision ADC: 8-channel 10-bit analog-to-digital converter for sensor integration
• Wide Operating Range: -40°C to 105°C temperature range with 3V to 3.6V supply voltage

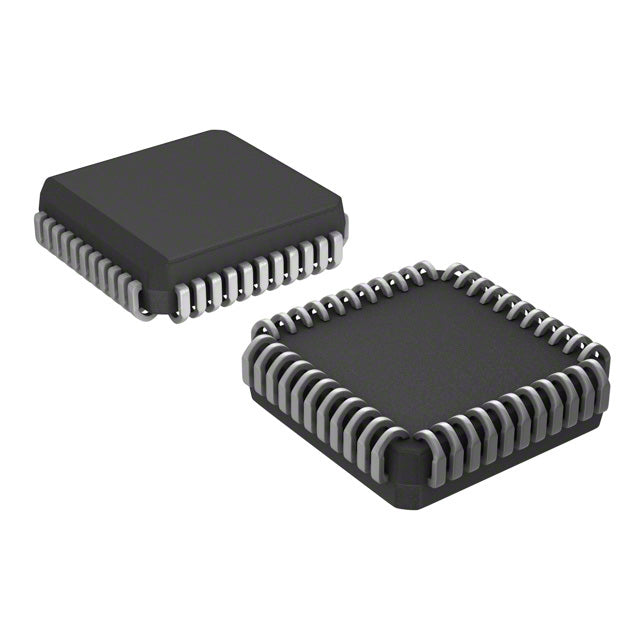

• Compact Package: 44-LCC (J-Lead) surface mount package for space-efficient designs

Applications

This microcontroller is perfectly suited for:

• Industrial automation and control systems
• Automotive electronics and sensors
• Consumer electronics and smart appliances
• IoT edge devices and sensor nodes
• Medical instrumentation
• Building automation systems
