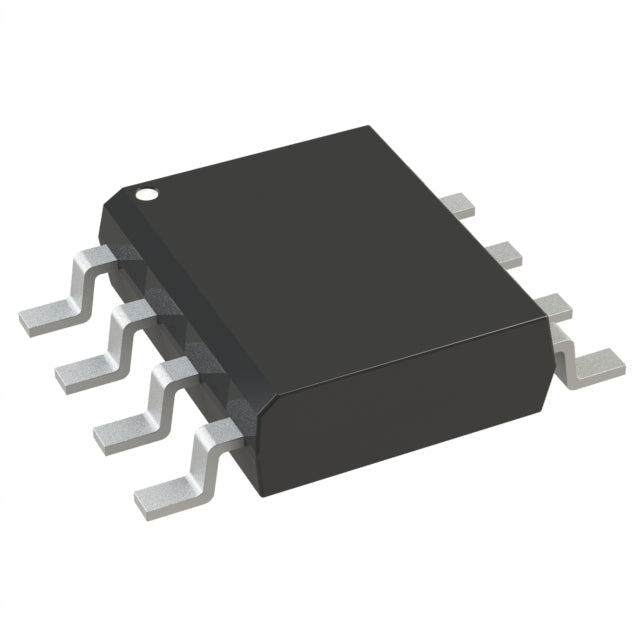

Diodes Incorporated ZXGD3105N8TC
Regular price
$1.36
Regular price
$1.43
Sale price
$1.36
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.36 | $1.36 |
| 15+ | $1.32 | $19.80 |
| 25+ | $1.29 | $32.25 |
| 50+ | $1.22 | $61.00 |
| 100+ | $1.07 | $107.00 |
| N+ | $0.21 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Diodes Incorporated |
| Product Series | |
| Packaging | Factory | Cut Tape (CT) |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | MOSFET (N-Channel) |
| Voltage - Supply | 4.5V ~ 25V |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 4A, 9A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 77ns, 26ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO |
| ROHS |  |
ZXGD3105N8TC.pdf
×
