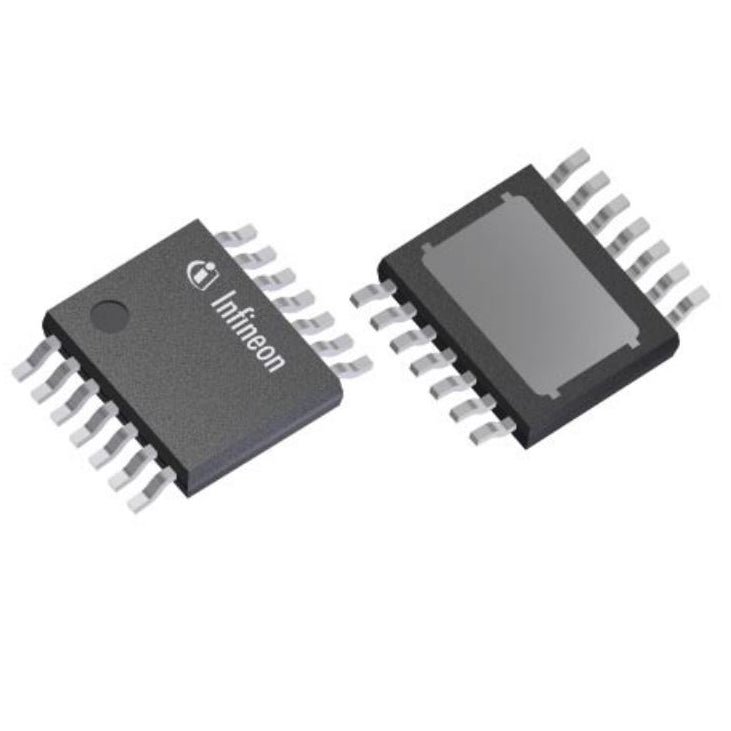

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Infineon Technologies
BTN70301EPAXUMA1
BTN70301EPAXUMA1
Regular price
Dhs. 9.66
Regular price
Dhs. 10.19
Sale price
Dhs. 9.66
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 9.66 AED | Dhs. 9.66 AED |
| 15+ | Dhs. 9.37 AED | Dhs. 140.55 AED |
| 25+ | Dhs. 9.17 AED | Dhs. 229.25 AED |
| 50+ | Dhs. 8.66 AED | Dhs. 433.00 AED |
| 100+ | Dhs. 7.64 AED | Dhs. 764.00 AED |
| N+ | Dhs. 1.53 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Half Bridge |
| Applications | DC Motors, General Purpose |
| Interface | Logic |
| Load Type | Inductive |
| Technology | SMART7 |
| Rds On (Typ) | 20mOhm LS, 12mOhm HS |
| Current - Output / Channel | 7A |
| Current - Peak Output | 17A |
| Voltage - Supply | 6V ~ 18V |
| Voltage - Load | - |
| Features | Diagnostic Enable, Enable, SENSE |
| Fault Protection | Current Limiting, Over Current, Over Temperature, Over Voltage, Short Circuit |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-TSSOP (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | PG-TSDSO-14 |
| ROHS |  |
Datasheets:
BTN70301EPAXUMA1
.pdf
×
