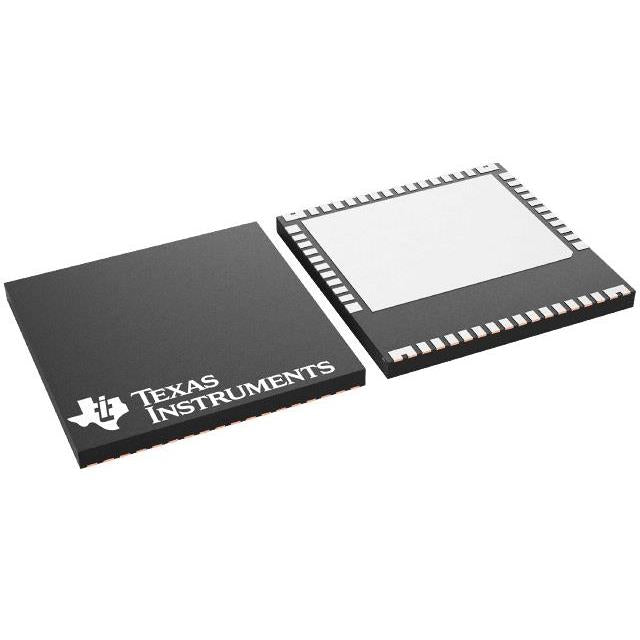

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Texas Instruments
LMG3422R030RQZT
LMG3422R030RQZT
Regular price
Dhs. 80.24
Regular price
Dhs. 84.47
Sale price
Dhs. 80.24
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 80.24 AED | Dhs. 80.24 AED |
| 15+ | Dhs. 77.71 AED | Dhs. 1,165.65 AED |
| 25+ | Dhs. 76.02 AED | Dhs. 1,900.50 AED |
| 50+ | Dhs. 71.80 AED | Dhs. 3,590.00 AED |
| 100+ | Dhs. 63.35 AED | Dhs. 6,335.00 AED |
| N+ | Dhs. 12.67 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | Low Side |
| Output Type | N/P-Channel |
| Interface | PWM |
| Voltage - Load | 600V |
| Voltage - Supply (Vcc/Vdd) | 7.5V ~ 18V |
| Current - Output (Max) | 40A |
| Rds On (Typ) | 26mOhm |
| nput Type | Non-Inverting |
| Features | Slew Rate Controlled, Status Flag |
| Fault Protection | Current Limiting (Fixed), Over Temperature, UVLO |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 54-VQFN Exposed Pad |
| Supplier Device Package | 54-VQFN (12x12) |
Datasheets:
LMG3422R030RQZT
.pdf
×
