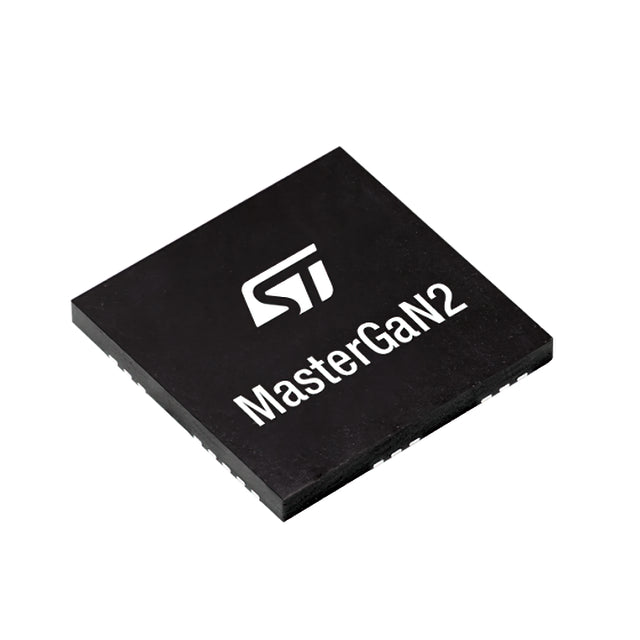

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
STMicroelectronics
MASTERGAN2TR
MASTERGAN2TR
Regular price
Dhs. 26.52
Regular price
Dhs. 27.91
Sale price
Dhs. 26.52
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 26.52 AED | Dhs. 26.52 AED |
| 15+ | Dhs. 25.68 AED | Dhs. 385.20 AED |
| 25+ | Dhs. 25.12 AED | Dhs. 628.00 AED |
| 50+ | Dhs. 23.72 AED | Dhs. 1,186.00 AED |
| 100+ | Dhs. 20.93 AED | Dhs. 2,093.00 AED |
| N+ | Dhs. 4.19 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Half Bridge |
| Applications | General Purpose |
| Interface | - |
| Load Type | Inductive, Capacitive |
| Technology | DMOS |
| Rds On (Typ) | 150mOhm LS, 225mOhm HS |
| Current - Output / Channel | 6.5A, 10A |
| Current - Peak Output | 17A |
| Voltage - Supply | 4.75V ~ 4.75V |
| Voltage - Load | 600V (Max) |
| Features | Bootstrap Circuit |
| Fault Protection | Over Temperature, UVLO |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 31-VQFN Exposed Pad |
| Supplier Device Package | 31-QFN (9x9) |
| ROHS |  |
Datasheets:
MASTERGAN2TR
.pdf
×
