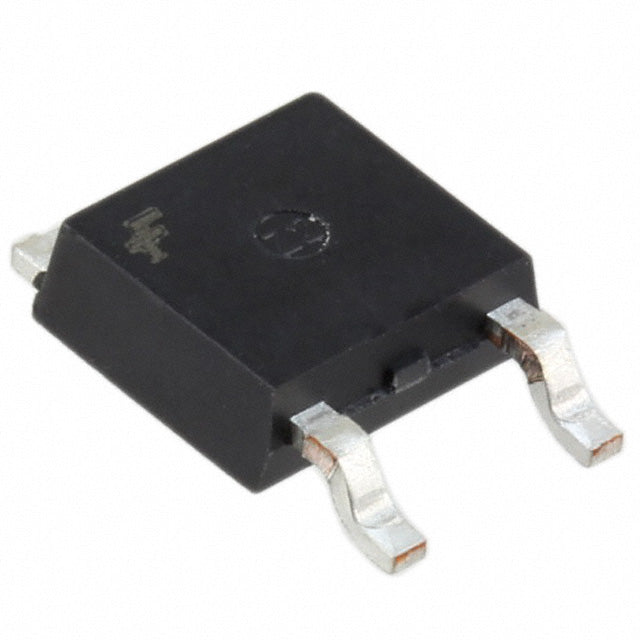

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
onsemi
MC7809ECDTXM
MC7809ECDTXM
Regular price
Dhs. 1.05
Regular price
Dhs. 1.09
Sale price
Dhs. 1.05
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 1.05 AED | Dhs. 1.05 AED |
| 15+ | Dhs. 1.00 AED | Dhs. 15.00 AED |
| 25+ | Dhs. 0.98 AED | Dhs. 24.50 AED |
| 50+ | Dhs. 0.93 AED | Dhs. 46.50 AED |
| 100+ | Dhs. 0.82 AED | Dhs. 82.00 AED |
| N+ | Dhs. 0.16 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 35V |
| Voltage - Output (Min/Fixed) | 9V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 2V @ 1A (Typ) |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 8 mA |
| Current - Supply (Max) | - |
| PSRR | 71dB (120Hz) |
| Control Features | - |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | 0°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Supplier Device Package | DPAK |
Datasheets:
MC7809ECDTXM
.pdf
×
