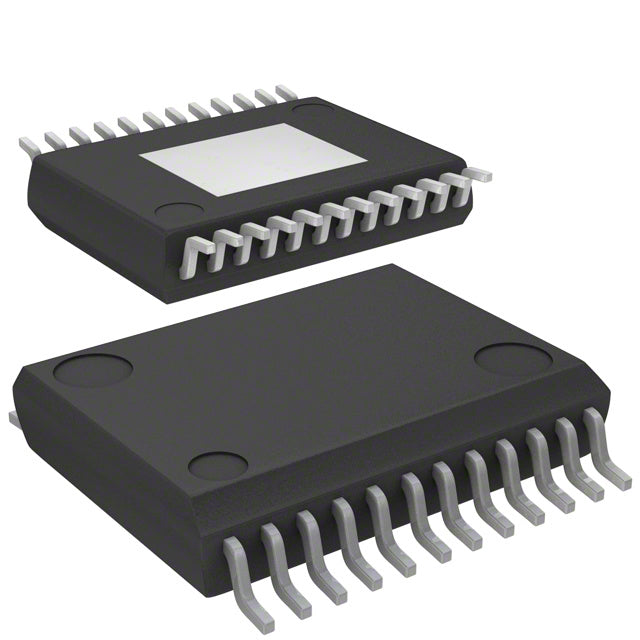

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
onsemi
NCV7725DQBR2G
NCV7725DQBR2G
Regular price
Dhs. 21.95
Regular price
Dhs. 23.11
Sale price
Dhs. 21.95
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 21.95 AED | Dhs. 21.95 AED |
| 15+ | Dhs. 21.26 AED | Dhs. 318.90 AED |
| 25+ | Dhs. 20.80 AED | Dhs. 520.00 AED |
| 50+ | Dhs. 19.64 AED | Dhs. 982.00 AED |
| 100+ | Dhs. 17.33 AED | Dhs. 1,733.00 AED |
| N+ | Dhs. 3.47 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Half Bridge (3) |
| Applications | DC Motors, General Purpose |
| Interface | Logic, PWM, SPI |
| Load Type | Capacitive and Resistive |
| Technology | NMOS |
| Rds On (Typ) | 800mOhm LS, 800mOhm HS |
| Current - Output / Channel | 500mA |
| Current - Peak Output | 1.1A |
| Voltage - Supply | 3.15V ~ 5.25V |
| Voltage - Load | 3.15V ~ 5.25V |
| Features | Charge Pump |
| Fault Protection | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | 24-LSSOP (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 24-SSOP-EP |
| ROHS |  |
Datasheets:
NCV7725DQBR2G
.pdf
×
