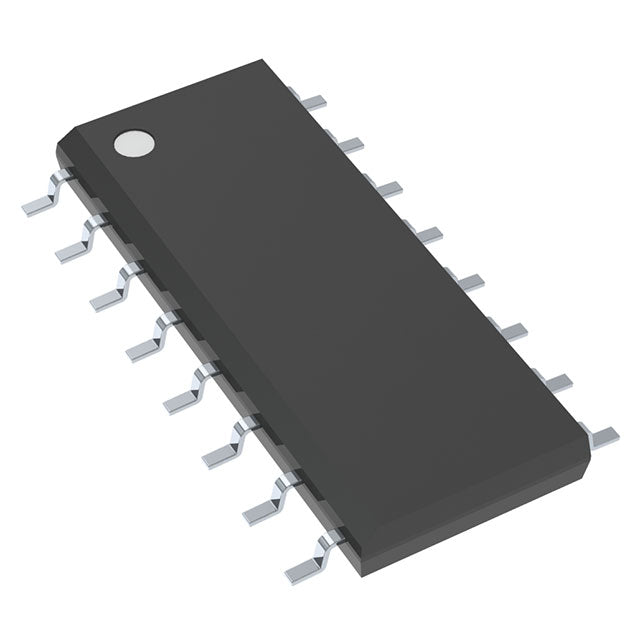

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Texas Instruments
SN74ALS109ADG4
SN74ALS109ADG4
Regular price
Dhs. 2.59
Regular price
Dhs. 2.73
Sale price
Dhs. 2.59
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 2.59 AED | Dhs. 2.59 AED |
| 15+ | Dhs. 2.51 AED | Dhs. 37.65 AED |
| 25+ | Dhs. 2.46 AED | Dhs. 61.50 AED |
| 50+ | Dhs. 2.32 AED | Dhs. 116.00 AED |
| 100+ | Dhs. 2.05 AED | Dhs. 205.00 AED |
| N+ | Dhs. 0.41 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74ALS |
| Packaging | Tube | |
| Function | Set(Preset) and Reset |
| Type | JK Type |
| Output Type | Complementary |
| Number of Elements | 2 |
| Number of Bits per Element | 1 |
| Clock Frequency | 34 MHz |
| Max Propagation Delay @ V, Max CL | 18ns @ 5V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 400µA, 8mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Iq) | 4 mA |
| Input Capacitance | - |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC |
| Supplier Device Package | 16-SOIC (0.154", 3.90mm Width) |
| ROHS |  |
Datasheets:
SN74ALS109ADG4
.pdf
×
