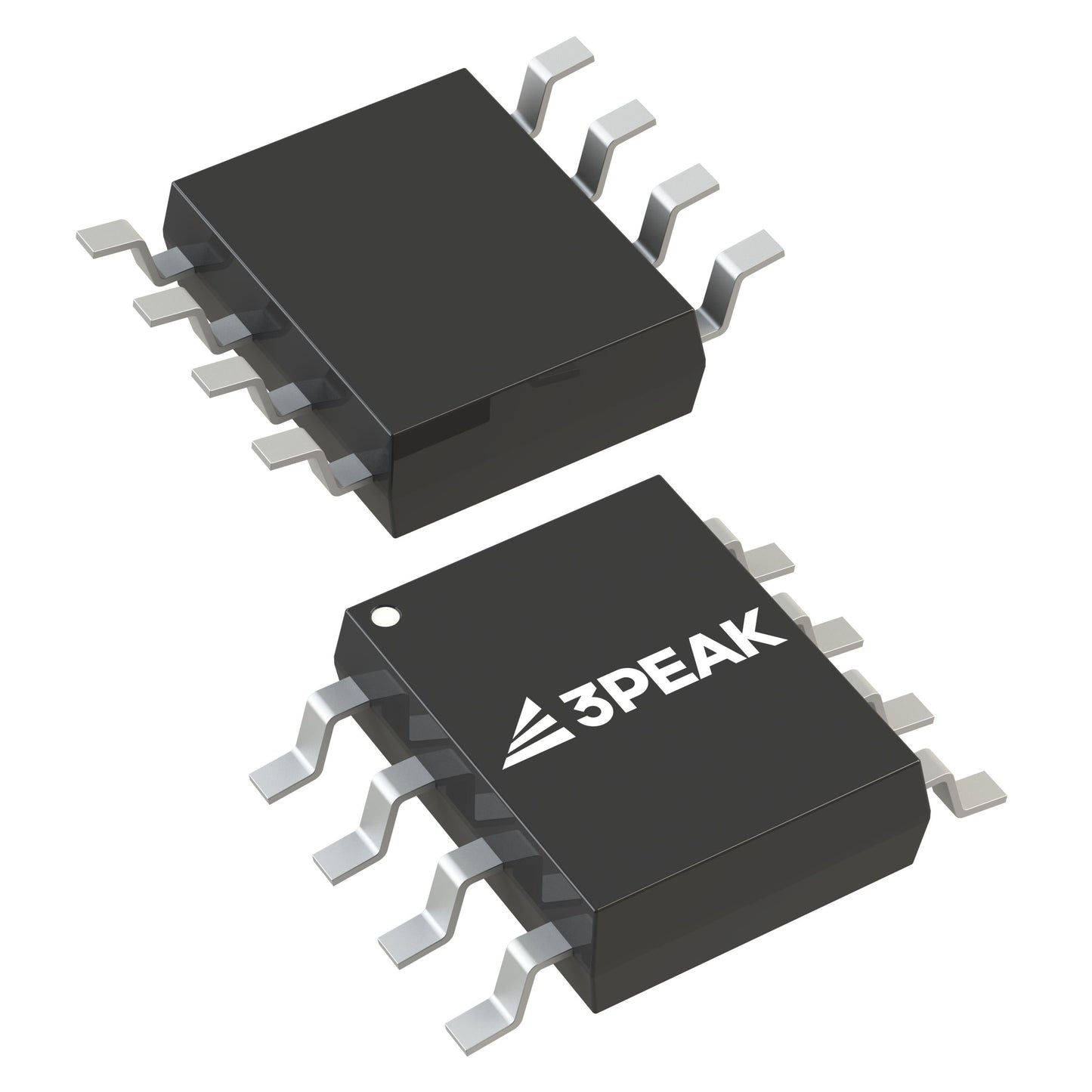

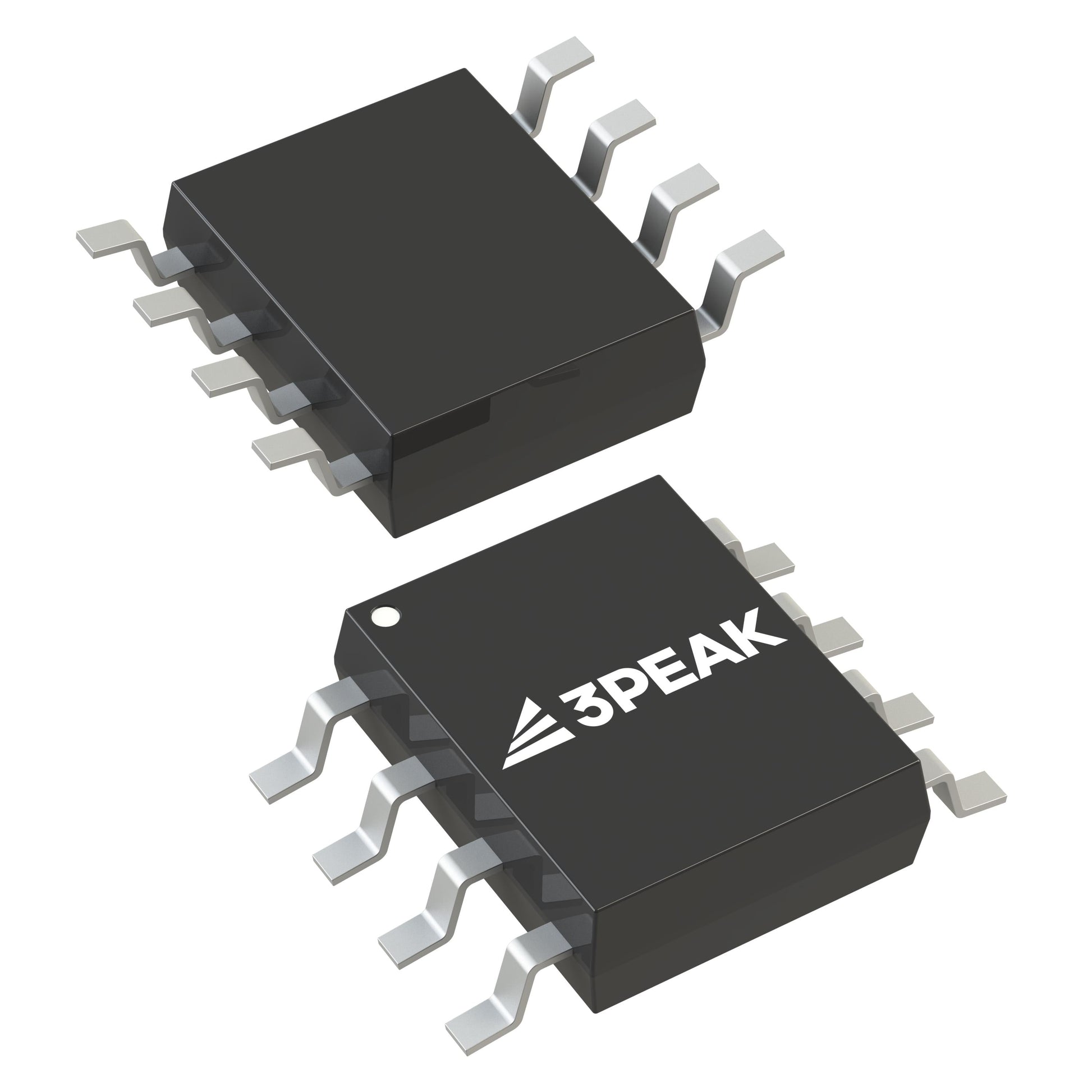

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
3PEAK
TPM1525-SO1R-S
TPM1525-SO1R-S
Regular price
Dhs. 14.46
Regular price
Dhs. 15.21
Sale price
Dhs. 14.46
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 14.46 AED | Dhs. 14.46 AED |
| 15+ | Dhs. 13.99 AED | Dhs. 209.85 AED |
| 25+ | Dhs. 13.69 AED | Dhs. 342.25 AED |
| 50+ | Dhs. 12.93 AED | Dhs. 646.50 AED |
| 100+ | Dhs. 11.41 AED | Dhs. 1,141.00 AED |
| N+ | Dhs. 2.28 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | 3PEAK |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Half Bridge |
| Applications | Synchronous Buck Converters |
| Interface | PWM |
| Load Type | Capacitive and Resistive |
| Technology | DrMOS |
| Rds On (Typ) | 320mOhm LS, 310mOhm HS |
| Current - Output / Channel | 15A |
| Current - Peak Output | 15A |
| Voltage - Supply | 3V ~ 6V |
| Voltage - Load | 7V ~ 150V |
| Features | Bootstrap Circuit |
| Fault Protection | Current Limiting, Over Temperature, Short Circuit, UVLO |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOP |
| ROHS |  |
Datasheets:
TPM1525-SO1R-S
.pdf
×
