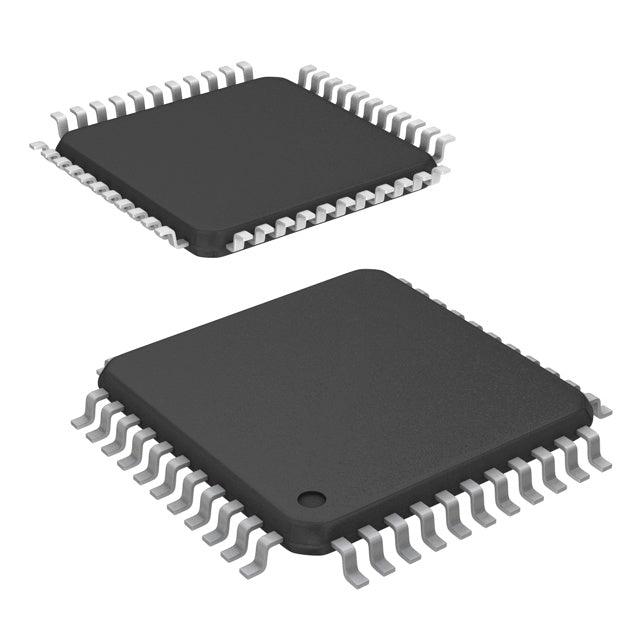

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Infineon Technologies
CY8C4146AXIT413XQMA1
CY8C4146AXIT413XQMA1
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 9.44 AED | Dhs. 9.44 AED |
| 15+ | Dhs. 9.14 AED | Dhs. 137.10 AED |
| 25+ | Dhs. 8.94 AED | Dhs. 223.50 AED |
| 50+ | Dhs. 8.44 AED | Dhs. 422.00 AED |
| 100+ | Dhs. 7.45 AED | Dhs. 745.00 AED |
| N+ | Dhs. 1.49 AED | Price Inquiry |
Couldn't load pickup availability
Apply for PCBA engineering assistance
The CY8C4146AXIT413XQMA1 is a high-performance 32-bit microcontroller from Infineon Technologies' PSOC™ 4100T series, designed for demanding applications in aerospace, automotive, industrial, medical, and telecommunications sectors. Built on the ARM® Cortex®-M0+ core architecture, this versatile MCU delivers exceptional processing power at 48MHz while maintaining low power consumption.
Key Features & Benefits:
- ARM® Cortex®-M0+ 32-bit processor running at 48MHz for superior performance
- 64KB Flash memory and 16KB RAM for robust program storage and execution
- Advanced CapSense technology for intuitive touch-sensing interfaces
- Comprehensive connectivity: I2C, LINbus, SPI, UART/USART
- 34 programmable I/O pins for flexible system integration
- Wide operating voltage range: 1.71V to 5.5V
- Industrial temperature range: -40°C to 85°C
- 16-channel 12-bit SAR ADC for precise analog measurements
- Integrated peripherals: DMA, PWM, WDT, Brown-out Detect/Reset, POR
- Compact 44-TQFP (10x10) / 44-LQFP package
This microcontroller is ideal for applications requiring reliable human-machine interface (HMI) capabilities, sensor integration, and real-time control. The PSOC 4100T series combines programmable analog and digital blocks with a powerful processor, enabling designers to create highly integrated, cost-effective solutions.
Technical Specifications
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | PSOC™ 4100T |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M0+ |
| Core Size | 32-Bit |
| Speed | 48MHz |
| Connectivity | I2C, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, CapSense, DMA, POR, PWM, WDT |
| Number of I/O | 34 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 5.5V |
| Data Converters | A/D 16x12b SAR |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Memory Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 44-TQFP (10x10) |
| Supplier Device Package | 44-LQFP |
Applications
Perfect for industrial control systems, automotive HMI panels, medical devices, consumer electronics with touch interfaces, IoT edge devices, and smart home automation systems.
Related Resources
Explore our complete range of Microcontrollers for your next project. Visit HQICKEY for more high-reliability semiconductor solutions. Stay updated with the latest industry insights on our News Blog.
Datasheets:
CY8C4146AXIT413XQMA1.pdf
