CY8C4146LQIT403XQSA1

Infineon PSOC 4 High-Performance Microcontroller - CY8C4146LQIT403XQSA1

The CY8C4146LQIT403XQSA1 is a cutting-edge microcontroller from Infineon Technologies' renowned PSOC™ 4 series, engineered to deliver exceptional performance and reliability for demanding applications in aerospace, automotive, industrial, medical, and telecommunications sectors.

Key Features & Benefits:

• Powerful ARM® Cortex®-M0+ Core: 32-bit processing at 48MHz ensures fast, efficient operation for complex embedded systems
• Generous Memory: 64KB Flash program memory and 16KB RAM provide ample space for sophisticated applications
• Versatile Connectivity: Integrated I2C, LINbus, SPI, and UART/USART interfaces enable seamless communication with peripheral devices
• Advanced Peripherals: Built-in DMA, PWM, WDT, and brown-out detection enhance system reliability and performance
• High-Resolution ADC: 16-channel 12-bit SAR analog-to-digital converter for precise sensor measurements
• Wide Operating Range: Functions reliably from 1.71V to 5.5V across -40°C to 85°C temperature range

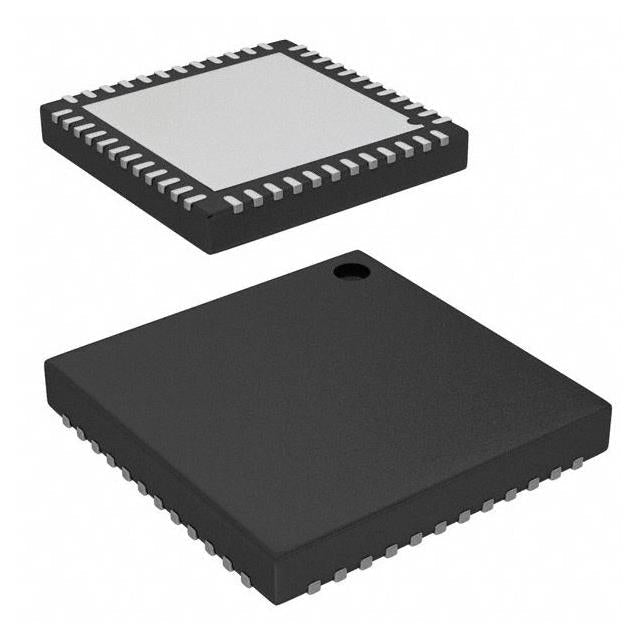

• Compact Package: Space-saving 48-QFN (6x6mm) surface-mount package with 37 I/O pins
• RoHS Compliant: Environmentally friendly design meets international standards

This microcontroller is ideal for HMI (Human-Machine Interface) applications, sensor integration, motor control, and embedded system development where reliability and performance are paramount.

Technical Specifications:

Product attributes	Property Value
Manufacturer	Infineon Technologies
Product Series	PSOC™ 4
Packaging	Tray |
Core Processor	ARM® Cortex®-M0+
Core Size	32-Bit
Speed	48MHz
Connectivity	I2C, LINbus, SPI, UART/USART
Peripherals	Brown-out Detect/Reset, DMA, POR, PWM, WDT
Number of I/O	37
Program Memory Size	64KB (64K x 8)
Program Memory Type	FLASH
EEPROM Size	-
RAM Size	16K x 8
Voltage - Supply (Vcc/Vdd)	1.71V ~ 5.5V
Data Converters	A/D 16x12b SAR
Oscillator Type	Internal
Operating Temperature	-40°C ~ 85°C (TA)
Memory Type	Surface Mount
Grade	-
Qualification	-
Package / Case	48-QFN (6x6)
Supplier Device Package	48-UFQFN Exposed Pad
ROHS
