CY8C4147AXIT413XQMA1

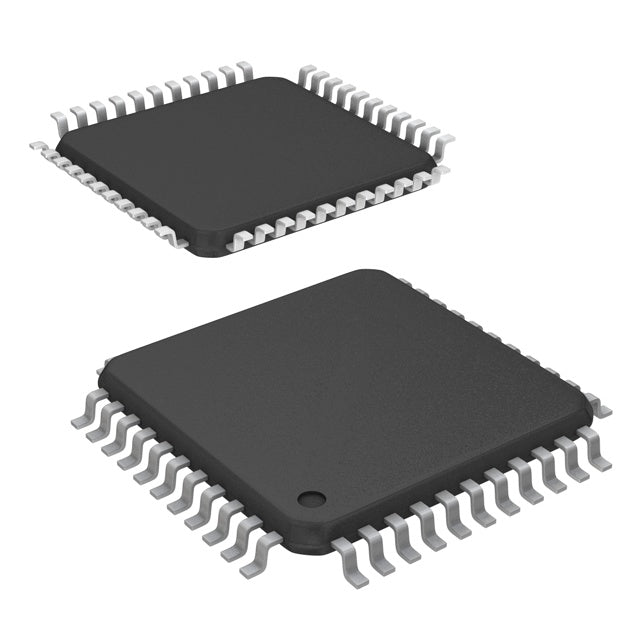

Infineon CY8C4147AXIT413XQMA1 PSoC™ 4 Microcontroller

The CY8C4147AXIT413XQMA1 is a high-performance, low-power microcontroller from Infineon's PSoC™ 4 family, featuring an ARM® Cortex®-M0+ 32-bit processor running at 48MHz. This versatile MCU is engineered for human-machine interface (HMI) applications, combining programmable analog and digital peripherals with integrated CapSense touch-sensing technology.

Key Features & Benefits

• High-Performance Processing: ARM Cortex-M0+ core delivers efficient 32-bit computing at 48MHz for responsive system control
• Generous Memory: 128KB Flash program memory and 16KB SRAM provide ample space for complex applications and data storage
• Advanced Touch Sensing: Integrated CapSense technology enables sophisticated capacitive touch interfaces without external components
• Flexible Connectivity: Multiple communication interfaces including I²C, SPI, UART/USART, and LINbus support diverse system architectures
• Rich Peripheral Set: DMA, PWM, WDT, brown-out detection, and 16-channel 12-bit SAR ADC enable comprehensive system integration
• Wide Operating Range: 1.71V to 5.5V supply voltage and -40°C to +85°C temperature range suit industrial and automotive environments
• Compact Package: 44-pin LQFP (10x10mm) with 34 I/O pins maximizes functionality in space-constrained designs

Ideal Applications

This microcontroller excels in automotive dashboards, industrial control panels, home appliances with touch interfaces, medical devices, IoT edge nodes, and battery-powered portable equipment requiring low-power operation with advanced HMI capabilities.

Technical Specifications

Product attributes	Property Value
Manufacturer	Infineon Technologies
Product Series	PSOC™ 4
Packaging	Tray |
Core Processor	ARM® Cortex®-M0+
Core Size	32-Bit
Speed	48MHz
Connectivity	I2C, LINbus, SPI, UART/USART
Peripherals	Brown-out Detect/Reset, CapSense, DMA, POR, PWM, WDT
Number of I/O	34
Program Memory Size	128KB (128K x 8)
Program Memory Type	FLASH
EEPROM Size	-
RAM Size	16K x 8
Voltage - Supply (Vcc/Vdd)	1.71V ~ 5.5V
Data Converters	A/D 16x12b SAR
Oscillator Type	Internal
Operating Temperature	-40°C ~ 85°C (TA)
Memory Type	Surface Mount
Grade	-
Qualification	-
Package / Case	44-TQFP (10x10)
Supplier Device Package	44-LQFP
ROHS
