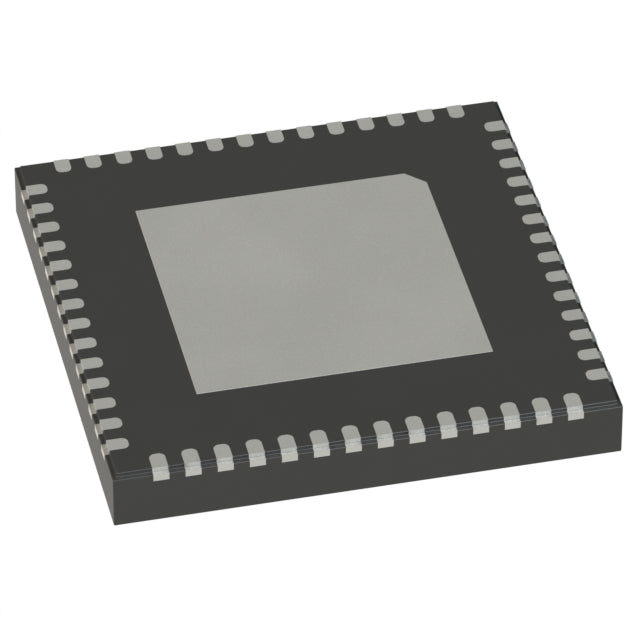

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Infineon Technologies
CY8C4147LWEHVS035XXQLA1
CY8C4147LWEHVS035XXQLA1
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 48.85 AED | Dhs. 48.85 AED |
| 15+ | Dhs. 47.32 AED | Dhs. 709.80 AED |
| 25+ | Dhs. 46.30 AED | Dhs. 1,157.50 AED |
| 50+ | Dhs. 43.72 AED | Dhs. 2,186.00 AED |
| 100+ | Dhs. 38.58 AED | Dhs. 3,858.00 AED |
| N+ | Dhs. 7.72 AED | Price Inquiry |
Couldn't load pickup availability
Apply for PCBA engineering assistance
Infineon CY8C4147LWEHVS035XXQLA1 - High-Voltage Automotive Microcontroller
The CY8C4147LWEHVS035XXQLA1 from Infineon Technologies is a premium automotive-grade microcontroller from the PSOC™ 4 HV MS series, engineered for mission-critical embedded systems requiring exceptional reliability and performance.
Key Features & Benefits
- ARM® Cortex®-M0+ Core: 32-bit processing power running at 48MHz for responsive real-time control
- Automotive-Grade Reliability: AEC-Q100 qualified with extended temperature range (-40°C to 125°C)
- Wide Voltage Operation: 3.6V to 28V supply range ideal for automotive and industrial applications
- Rich Connectivity: Multiple interfaces including I2C, SPI, UART/USART, LINbus, and SmartCard support
- Generous Memory: 128KB Flash program memory, 16KB RAM, and 16KB EEPROM for data retention
- Advanced Peripherals: DMA, PWM, temperature sensor, watchdog timer, and brown-out detection
- Precision Analog: 24-channel 12-bit SAR ADC for accurate sensor measurements
- 41 I/O Pins: Extensive GPIO for flexible system integration
- Compact Package: 56-VFQFN (8x8mm) with wettable flank for enhanced soldering reliability
Ideal Applications
Perfect for automotive body control modules, industrial motor control, smart sensors, battery management systems, and high-voltage power management applications where reliability and extended temperature operation are essential.
Technical Specifications
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | PSOC™ 4 HV MS |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | ARM® Cortex®-M0+ |
| Core Size | 32-Bit |
| Speed | 48MHz |
| Connectivity | FIFO, I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, Temp Sensor, WDT |
| Number of I/O | 41 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 16K x 8 |
| RAM Size | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3.6V ~ 28V |
| Data Converters | A/D 24x12b SAR |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Memory Type | Surface Mount, Wettable Flank |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Package / Case | 56-WQFN (8x8) |
| Supplier Device Package | 56-VFQFN Exposed Pad |
| ROHS |  |
