CYT3DLABSBQ1AESGSXQLA1

Infineon TRAVEO-2 Cluster Automotive Microcontroller

The Infineon CYT3DLABSBQ1AESGSXQLA1 is a high-performance automotive-grade microcontroller from the TRAVEO-2 Cluster family, engineered specifically for mission-critical automotive cluster and instrument panel applications. This advanced MCU features a powerful dual-core architecture combining an ARM® Cortex®-M0+ running at 100MHz and an ARM® Cortex®-M7F operating at 240MHz, delivering exceptional processing power for demanding real-time automotive systems.

Designed to meet the stringent requirements of modern automotive electronics, this 32-bit dual-core microcontroller offers 4.2MB of Flash memory, 384KB of RAM, and 128KB of EEPROM, providing ample resources for complex applications. The device is AEC-Q100 qualified, ensuring automotive-grade reliability across an extended temperature range of -40°C to 105°C.

Complete Technical Specifications

Product attributes	Property Value
Manufacturer	Infineon Technologies
Product Series
Packaging	Tray |
Core Processor	ARM® Cortex®-M0+, ARM® Cortex®-M7F
Core Size	32-Bit Dual-Core
Speed	100MHz, 240MHz
Connectivity	CANbus, Ethernet, I2C, LINbus, eMMC/SD, SPI, UART/USART
Peripherals	Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, Temp Sensor, WDT
Number of I/O	108
Program Memory Size	4.2MB (4.2M x 8)
Program Memory Type	FLASH
EEPROM Size	128K x 8
RAM Size	384K x 8
Voltage - Supply (Vcc/Vdd)	2.7V ~ 5.5V
Data Converters	A/D 48x12b SAR
Oscillator Type	External, Internal
Operating Temperature	-40°C ~ 105°C (TA)
Memory Type	Surface Mount
Grade	Automotive
Qualification	AEC-Q100

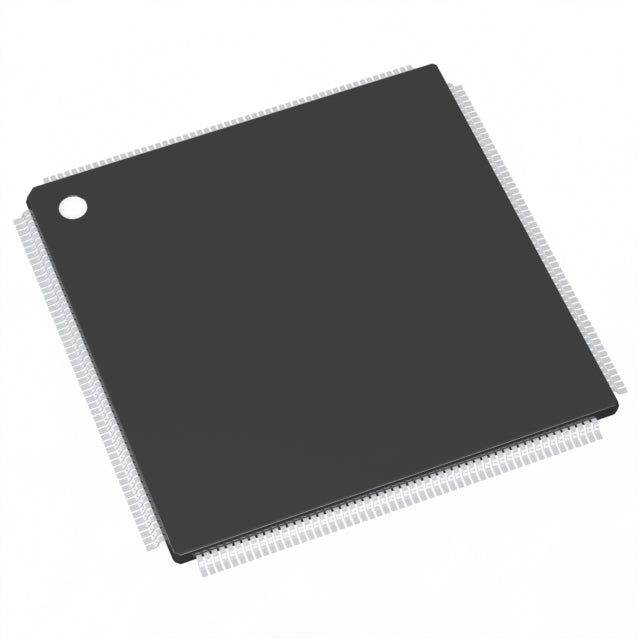

Package / Case	216-TEQFP (24x24)
Supplier Device Package	216-TEQFP (24x24)
ROHS

Key Features & Benefits

• Dual-Core Performance: Asymmetric multiprocessing with ARM Cortex-M0+ and M7F cores enables efficient task distribution and real-time responsiveness
• Extensive Connectivity: Integrated CANbus, Ethernet, LINbus, I2C, SPI, and UART/USART interfaces support comprehensive automotive networking requirements
• Rich Peripheral Set: Includes DMA, PWM, I2S, temperature sensor, watchdog timer, and brown-out detection for robust system design
• High I/O Count: 108 general-purpose I/O pins provide flexibility for complex automotive cluster designs
• Advanced Data Conversion: 48-channel 12-bit SAR ADC enables precise analog signal acquisition
• Wide Operating Voltage: 2.7V to 5.5V supply range accommodates various automotive power architectures
• Automotive-Grade Reliability: AEC-Q100 qualified with extended temperature range (-40°C to 105°C) ensures dependable operation in harsh automotive environments
• RoHS Compliant: Meets environmental standards for global automotive markets

Typical Applications

This TRAVEO-2 Cluster microcontroller is ideally suited for:

• Automotive instrument clusters and digital cockpits
• Advanced driver information displays
• Body control modules and gateway applications
• Infotainment system controllers
• ADAS (Advanced Driver Assistance Systems) components
• Electric vehicle (EV) battery management systems
• Industrial automation and control systems requiring automotive-grade reliability
