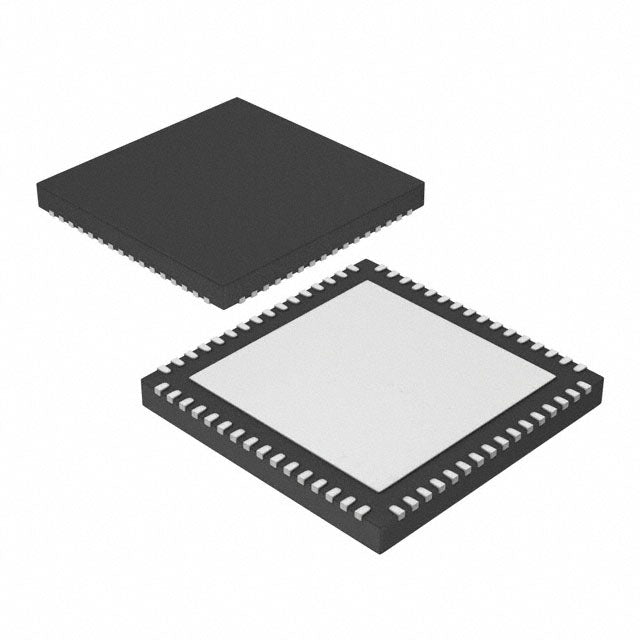

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Renesas Electronics Corporation
R7FA2E1A92DNB#UA0
R7FA2E1A92DNB#UA0
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 4.76 AED | Dhs. 4.76 AED |
| 15+ | Dhs. 4.62 AED | Dhs. 69.30 AED |
| 25+ | Dhs. 4.52 AED | Dhs. 113.00 AED |
| 50+ | Dhs. 4.27 AED | Dhs. 213.50 AED |
| 100+ | Dhs. 3.77 AED | Dhs. 377.00 AED |
| N+ | Dhs. 0.75 AED | Price Inquiry |
Couldn't load pickup availability
Apply for PCBA engineering assistance
R7FA2E1A92DNB#UA0 - High-Reliability ARM Cortex-M23 Microcontroller
The R7FA2E1A92DNB#UA0 from Renesas Electronics Corporation is a powerful 32-bit microcontroller built on the ARM® Cortex®-M23 core, designed for high-reliability applications in aerospace, automotive, industrial, medical, and telecommunications sectors. Operating at 48MHz with 128KB Flash memory and 16KB RAM, this microcontroller delivers exceptional performance for embedded systems requiring robust security features including AES encryption and True Random Number Generator (TRNG).
Key Features & Benefits
- High-Performance Core: ARM® Cortex®-M23 32-bit processor running at 48MHz
- Generous Memory: 128KB Flash program memory, 4KB EEPROM, and 16KB RAM
- Wide Voltage Range: Operates from 1.6V to 5.5V for flexible power design
- Rich Connectivity: I2C, SmartCard, SPI, UART/USART interfaces
- Advanced Peripherals: AES, DMA, LVD, POR, PWM, Temperature Sensor, TRNG, WDT
- 53 I/O Pins: Extensive GPIO for complex applications
- Precision ADC: 13-channel 12-bit SAR analog-to-digital converter
- Industrial Temperature Range: -40°C to 85°C operation
- Compact Package: 64-HWQFN (8x8mm) surface mount design
Technical Specifications
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | RA2E1 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M23 |
| Core Size | 32-Bit |
| Speed | 48MHz |
| Connectivity | I2C, SmartCard, SPI, UART/USART |
| Peripherals | AES, DMA, LVD, POR, PWM, Temp Sensor, TRNG, WDT |
| Number of I/O | 53 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.6V ~ 5.5V |
| Data Converters | A/D 13x12b SAR |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Memory Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 64-HWQFN (8x8) |
| Supplier Device Package | 64-WFQFN Exposed Pad |
Applications
This microcontroller is ideal for demanding applications including:
- Industrial automation and control systems
- Automotive body electronics and sensors
- Medical device instrumentation
- IoT edge devices and smart sensors
- Building automation systems
- Consumer electronics requiring security features
Why Choose HQICKEY?
At HQICKEY, we specialize in providing premium, high-reliability semiconductors for mission-critical applications. Our extensive inventory of microcontrollers ensures you have access to the latest components from leading manufacturers like Renesas Electronics Corporation.
For more technical insights, product comparisons, and industry trends, visit our technical blog where we share expert knowledge on semiconductor selection and application design.
Order your R7FA2E1A92DNB#UA0 microcontroller today and experience the HQICKEY difference in quality and service.
Datasheets:
R7FA2E1A92DNB#UA0.pdf
