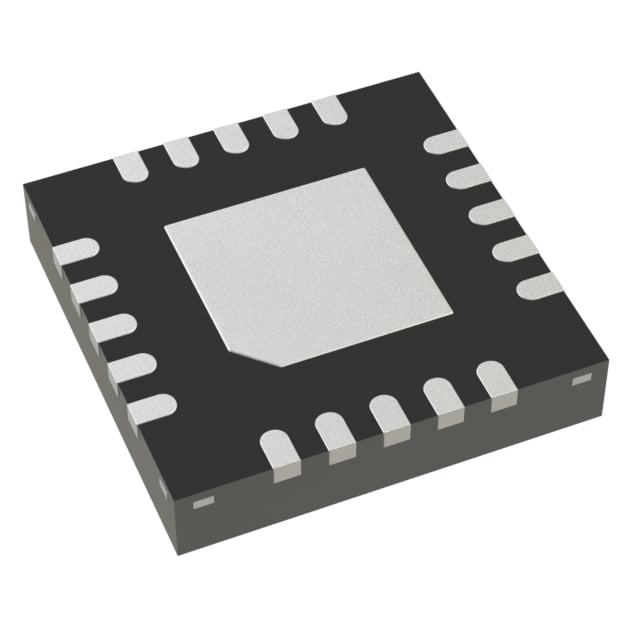

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Renesas Electronics Corporation
R7FA2E2A54CNK#UA1
R7FA2E2A54CNK#UA1
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 3.37 AED | Dhs. 3.37 AED |
| 15+ | Dhs. 3.28 AED | Dhs. 49.20 AED |
| 25+ | Dhs. 3.20 AED | Dhs. 80.00 AED |
| 50+ | Dhs. 3.03 AED | Dhs. 151.50 AED |
| 100+ | Dhs. 2.67 AED | Dhs. 267.00 AED |
| N+ | Dhs. 0.53 AED | Price Inquiry |
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | RA2E2 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M23 |
| Core Size | 32-Bit |
| Speed | 48MHz |
| Connectivity | I3C, SCI, SmartCard, SPI, UART/USART |
| Peripherals | AES, DMA, LVD, POR, PWM, Temp Sensor, TRNG, WDT |
| Number of I/O | 19 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.6V ~ 5.5V |
| Data Converters | A/D 8x12b SAR |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Memory Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 24-HWQFN (4x4) |
| Supplier Device Package | 24-WFQFN Exposed Pad |
Product Overview
The R7FA2E2A54CNK#UA1 is a high-performance 32-bit microcontroller from Renesas Electronics' RA2E2 series, featuring an ARM® Cortex®-M23 core running at 48MHz. This compact MCU delivers exceptional processing power and energy efficiency for embedded applications in aerospace, automotive, industrial, medical, and telecommunications sectors.
Key Features & Benefits
- High-Performance Processing: ARM Cortex-M23 core at 48MHz ensures fast execution for demanding real-time applications
- Comprehensive Memory: 32KB Flash program memory, 8KB RAM, and 2KB EEPROM for flexible data storage
- Advanced Security: Built-in AES encryption, TRNG (True Random Number Generator) for secure embedded systems
- Rich Connectivity: I3C, SCI, SmartCard, SPI, UART/USART interfaces for versatile communication
- Integrated Peripherals: DMA, PWM, temperature sensor, watchdog timer, and low-voltage detection
- Precision Analog: 8-channel 12-bit SAR ADC for accurate sensor interfacing
- Wide Operating Range: 1.6V to 5.5V supply voltage, -40°C to 125°C temperature range
- Compact Package: 24-pin HWQFN (4x4mm) with 19 I/O pins for space-constrained designs
Applications
Ideal for industrial control systems, IoT edge devices, sensor networks, smart metering, motor control, medical instrumentation, and automotive body electronics.
Why Choose HQICKEY?
At HQICKEY, we specialize in providing high-reliability semiconductor components for mission-critical applications. Our extensive inventory of microcontrollers ensures you get authentic, quality-tested components with full traceability and technical support.
Stay updated with the latest semiconductor industry news, product releases, and technical insights on our blog.
Datasheets:
R7FA2E2A54CNK#UA1.pdf
