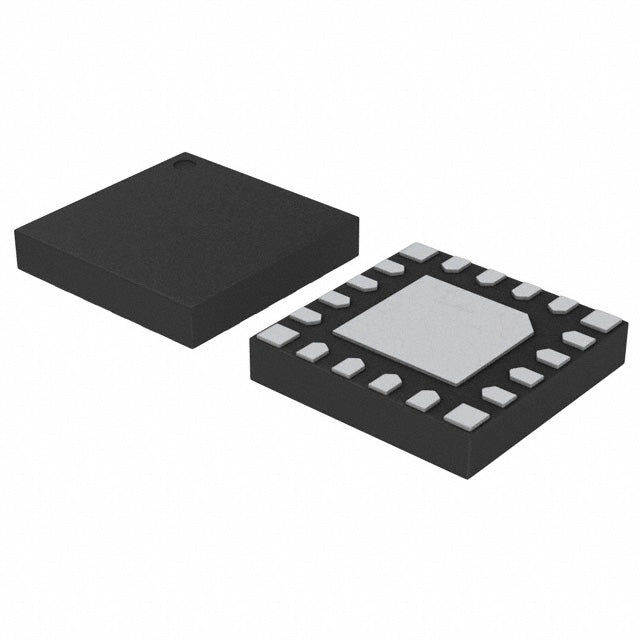

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Renesas Electronics Corporation
R7FA2E2A72DNJ#UA1
R7FA2E2A72DNJ#UA1
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 3.07 AED | Dhs. 3.07 AED |
| 15+ | Dhs. 2.96 AED | Dhs. 44.40 AED |
| 25+ | Dhs. 2.90 AED | Dhs. 72.50 AED |
| 50+ | Dhs. 2.74 AED | Dhs. 137.00 AED |
| 100+ | Dhs. 2.42 AED | Dhs. 242.00 AED |
| N+ | Dhs. 0.48 AED | Price Inquiry |
Couldn't load pickup availability
Apply for PCBA engineering assistance
Renesas RA2E2 Series ARM Cortex-M23 Microcontroller
The R7FA2E2A72DNJ#UA1 is a high-performance 32-bit microcontroller from Renesas Electronics' RA2E2 series, powered by the ARM® Cortex®-M23 core. Engineered for reliability and efficiency in embedded applications across aerospace, automotive, industrial, medical, and telecommunications sectors.
Key Features & Benefits
- High-Speed Processing: 48MHz ARM Cortex-M23 core delivers responsive performance for real-time applications
- Generous Memory: 64KB Flash program memory and 8KB RAM with 2KB EEPROM for flexible data storage
- Advanced Security: Built-in AES encryption and True Random Number Generator (TRNG) for secure embedded systems
- Versatile Connectivity: I3C, SCI, SmartCard, SPI, and UART/USART interfaces for seamless integration
- Wide Voltage Range: Operates from 1.6V to 5.5V, ideal for battery-powered and industrial applications
- Rich Peripherals: DMA, PWM, temperature sensor, watchdog timer, and low-voltage detection
- Compact Package: 20-HWQFN (4x4mm) surface mount package with 15 I/O pins
- Industrial Grade: Operating temperature range -40°C to 85°C for harsh environments
Technical Specifications
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | RA2E2 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M23 |
| Core Size | 32-Bit |
| Speed | 48MHz |
| Connectivity | I3C, SCI, SmartCard, SPI, UART/USART |
| Peripherals | AES, DMA, LVD, POR, PWM, Temp Sensor, TRNG, WDT |
| Number of I/O | 15 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.6V ~ 5.5V |
| Data Converters | A/D 7x12b SAR |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Memory Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 20-HWQFN (4x4) |
| Supplier Device Package | 20-WFQFN Exposed Pad |
Applications
Perfect for IoT devices, industrial automation, smart sensors, medical instruments, automotive control systems, and secure embedded applications requiring reliable performance and advanced security features.
Related Resources
Explore our complete range of Microcontrollers for your embedded system projects. Visit HQICKEY for premium semiconductor components. Stay updated with the latest industry insights on our News Blog.
Datasheets:
R7FA2E2A72DNJ#UA1.pdf
