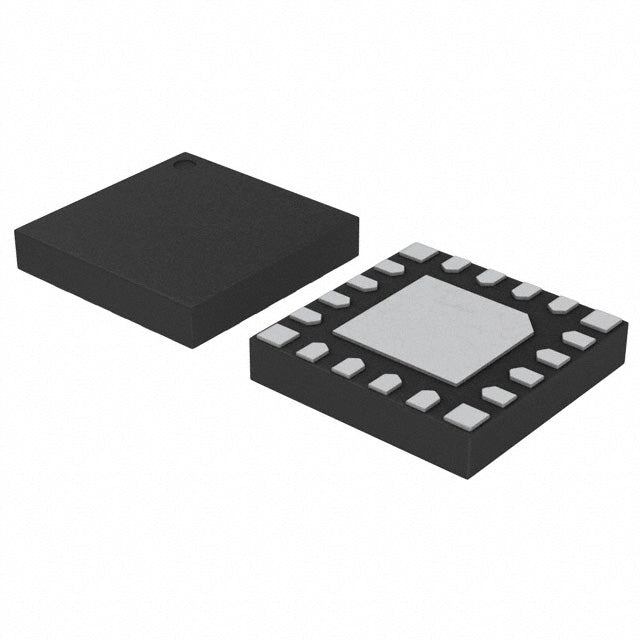

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Renesas Electronics Corporation
R7FA2E2A74CNJ#UA1
R7FA2E2A74CNJ#UA1
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 3.56 AED | Dhs. 3.56 AED |
| 15+ | Dhs. 3.45 AED | Dhs. 51.75 AED |
| 25+ | Dhs. 3.38 AED | Dhs. 84.50 AED |
| 50+ | Dhs. 3.19 AED | Dhs. 159.50 AED |
| 100+ | Dhs. 2.81 AED | Dhs. 281.00 AED |
| N+ | Dhs. 0.56 AED | Price Inquiry |
Couldn't load pickup availability
Apply for PCBA engineering assistance
Renesas R7FA2E2A74CNJ#UA1 - High-Reliability ARM Cortex-M23 Microcontroller
The Renesas R7FA2E2A74CNJ#UA1 is a high-performance 32-bit microcontroller from the RA2E2 series, powered by the ARM® Cortex®-M23 core. Engineered for mission-critical applications in aerospace, automotive, industrial automation, medical devices, and telecommunications, this MCU delivers exceptional reliability, energy efficiency, and processing power at 48MHz.
Key Features & Benefits
- ARM® Cortex®-M23 Core: Industry-leading 32-bit architecture optimized for low-power, high-efficiency embedded systems
- 48MHz Processing Speed: Fast execution for real-time control and data processing applications
- 64KB Flash Memory: Ample program storage for complex firmware and application code
- 8KB RAM: Sufficient working memory for data buffering and runtime operations
- Extended Temperature Range: Operates reliably from -40°C to 125°C (TA), perfect for harsh industrial and automotive environments
- Wide Voltage Range: 1.6V to 5.5V supply voltage for flexible power design
- Rich Connectivity: I3C, SCI, SmartCard, SPI, UART/USART interfaces for versatile communication
- Advanced Peripherals: AES encryption, DMA, LVD, POR, PWM, temperature sensor, TRNG, and WDT for comprehensive system control
- Compact Package: 20-HWQFN (4x4mm) surface mount package with exposed pad for superior thermal performance
Ideal Applications
This microcontroller excels in demanding embedded system applications including industrial control systems, automotive body electronics, medical monitoring devices, smart sensors, IoT edge devices, and secure communication modules. The integrated AES encryption and TRNG make it particularly suitable for security-sensitive applications.
Technical Specifications
| Product Attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | RA2E2 |
| Packaging | Tray |
| Core Processor | ARM® Cortex®-M23 |
| Core Size | 32-Bit |
| Speed | 48MHz |
| Connectivity | I3C, SCI, SmartCard, SPI, UART/USART |
| Peripherals | AES, DMA, LVD, POR, PWM, Temp Sensor, TRNG, WDT |
| Number of I/O | 15 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.6V ~ 5.5V |
| Data Converters | A/D 7x12b SAR |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Memory Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 20-HWQFN (4x4) |
| Supplier Device Package | 20-WFQFN Exposed Pad |
Why Choose HQICKEY?
At HQICKEY, we specialize in providing high-reliability semiconductor components for mission-critical applications. Our extensive inventory, rigorous quality control, and expert technical support ensure you receive genuine, tested components for your most demanding projects.
Related Products & Resources
Explore our complete range of Microcontrollers including ARM Cortex-M series, RISC-V, and specialized MCUs for automotive, industrial, and IoT applications. For technical insights, design tips, and industry news, visit our Technical Blog.
Fast shipping, competitive pricing, and dedicated support for engineers and procurement teams worldwide.
Datasheets:
R7FA2E2A74CNJ#UA1.pdf
