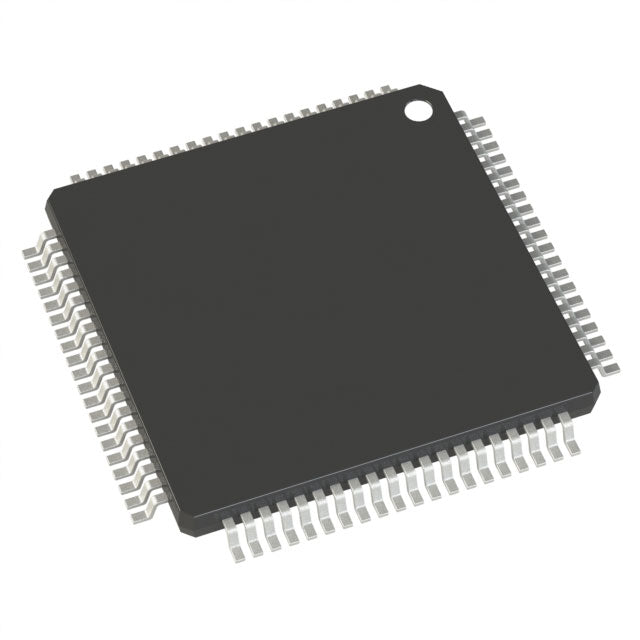

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Renesas Electronics Corporation
R7FA2L1AB2DFN#UA0
R7FA2L1AB2DFN#UA0
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 7.38 AED | Dhs. 7.38 AED |
| 15+ | Dhs. 7.13 AED | Dhs. 106.95 AED |
| 25+ | Dhs. 6.98 AED | Dhs. 174.50 AED |
| 50+ | Dhs. 6.59 AED | Dhs. 329.50 AED |
| 100+ | Dhs. 5.81 AED | Dhs. 581.00 AED |
| N+ | Dhs. 1.16 AED | Price Inquiry |
Couldn't load pickup availability
Apply for PCBA engineering assistance
Renesas R7FA2L1AB2DFN#UA0 - High-Performance ARM Cortex-M23 Microcontroller
The Renesas R7FA2L1AB2DFN#UA0 is a cutting-edge 32-bit microcontroller built on the powerful ARM® Cortex®-M23 core, designed to deliver exceptional performance and reliability for demanding embedded applications across aerospace, automotive, industrial, medical, and telecommunications sectors.
Key Features & Benefits
- High-Speed Processing: 48MHz ARM Cortex-M23 core ensures rapid execution and responsive system performance
- Generous Memory: 256KB flash program memory and 32KB RAM provide ample space for complex applications
- Versatile Connectivity: Integrated CANbus, I2C, SCI, SPI, Smart Card, and UART/USART interfaces enable seamless communication with diverse peripherals
- Advanced Security: Built-in AES encryption and True Random Number Generator (TRNG) protect sensitive data
- Rich Peripheral Set: DMA, PWM, temperature sensor, watchdog timer, and low-voltage detection enhance system capabilities
- Flexible I/O: 66 general-purpose I/O pins accommodate complex designs
- Precision Data Conversion: 17-channel 12-bit SAR ADC and 1-channel 12-bit DAC for accurate analog signal processing
- Wide Operating Range: Functions reliably from -40°C to 85°C and supports 1.6V to 5.5V supply voltage
- Compact Package: 80-LQFP (12x12mm) surface-mount package optimizes board space
Ideal Applications
This microcontroller excels in industrial automation, automotive control systems, medical devices, IoT edge computing, smart sensors, motor control, and battery-powered applications requiring low power consumption with high performance.
Technical Specifications
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | RA2L1 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M23 |
| Core Size | 32-Bit |
| Speed | 48MHz |
| Connectivity | CANbus, I2C, SCI, SPI, Smart Card, UART/USART |
| Peripherals | AES, DMA, LVD, POR, PWM, Temp Sensor, TRNG, WDT |
| Number of I/O | 66 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 8K x 8 |
| RAM Size | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.6V ~ 5.5V |
| Data Converters | A/D 17x12b SAR; D/A 1x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Memory Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 80-LFQFP (12x12) |
| Supplier Device Package | 80-LQFP |
Why Choose Renesas RA2L1 Series?
The RA2L1 family combines ARM Cortex-M23 efficiency with Renesas' proven reliability, offering an optimal balance of performance, power consumption, and cost-effectiveness. With comprehensive development tools and extensive documentation, you can accelerate your time-to-market while ensuring robust, long-term product reliability.
Related Resources
Explore our complete range of Microcontrollers for aerospace, automotive, industrial, and medical applications.
Visit HQICKEY for our full catalog of high-reliability semiconductor components.
Stay updated with the latest industry insights and product announcements on our News Blog.
Datasheets:
R7FA2L1AB2DFN#UA0.pdf
